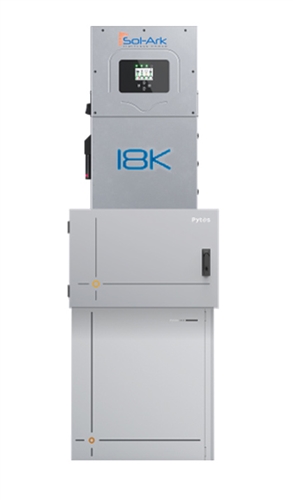

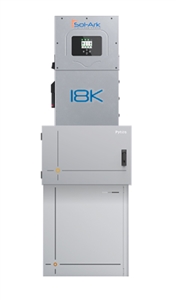

Pytes Energy V16 Battery System Bundle > 16kWh Lithium Iron Home Battery System - Standalone Battery Stack with Sol-Ark 18kW Hybrid Inverter
Pytes Energy V16 Home Battery
A high-performance wall-mounted battery engineered for all-weather energy storage. The V16 is a 51.2V LFP energy storage battery offering 16kWh of usable energy and up to 10.24kW output power. With IP66-rated enclosure, built-in heating system, and a design life of 8000 cycles, it ensures reliable, safe, and stable operation for residential and small commercial solar and backup applications.
- The All Weather Battery
- IP66 Rated Water & Dust Proof
- Integrated Heating Pad
- Fail-Safe Protections
- Integrated Battery Breaker
- Aerosol Fire Suppression
- Wide Compatibility
- Closed Loop Communication with Most Inverters
- Effortless Installation
- Wall or Ground Mounted
-Quick Commissioning
- Powerful & Robust
- 16kWh Nominal Energy
|
Model
|
V16 Battery (110402100209)
|
|
Number of Battery Module Stacks
|
1
|
|
Series
|
V16
|
|
Manufacturer
|
Pytes Energy
|
V16 Battery Specifications
|
Electrical
|
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
314Ah
|
|
Nominal Energy
|
16.077kWh
|
|
Operating Voltage Range
|
46.5V~56.8V
|
|
Recommended Charge Current
|
125A (6.4kW)
|
|
Recommended Discharge Current
|
150A (7.68kW)
|
|
Maximum Discharge Current
|
200A (10.24kW)
|
General
|
Chemistry
|
LFP (LiFePO4)
|
|
Structure
|
DC Breaker & Pre-Charge Circuit Integrated
|
|
Communication Interface
|
RS485 / CAN / WIFI / Dry Contact
|
|
Dimensions
|
27.56" x 26.42" x 10.24"
(700 mm x 671 mm x 260 mm)
|
|
Weight
|
287.7 lbs / 130.5 kg
|
|
Operating Temperature
|
Charge: 32~131°F / 0~55°C
Discharge: -4~131°F / -20~55°C
|
|
Heating Pad(Integrated)
|
Operation Temperature
0°F ~ 59°F / -18°C~15°C
|
|
Ingress Protection Ratings
|
IP66
|
|
Cycle Life*
|
8000 Cycles *
* Test Conditions: 25°C, 0.5C/0.5C, 90%DoD, 70% EOL)
|
|
Warranty
|
10 Years
|
|
Fire safety
|
Aerosol fire suppression module integrated
|
Compliance
|
UN38.3, CE, IEC62619, UL1973, UL9540, UL9540A, CEC, SGIP
|
Sol-Ark > Limitless 18K Hybrid Inverter
The Most Powerful Residential Hybrid Inverter on the Market.
Residential Hybrid Inverter:
Limitless 18K-2P-LV
SKU: Limitless 18K-2P-N
The Sol-Ark 18K-2P-N is a more powerful, rugged, and compliant model. It allows much larger PV arrays, higher surge handling (ideal for motors/AC units), stronger battery throughput, and broader environmental ratings.
Powerful. Intelligent. Reliable.
Engineered for the most grueling off-grid or backup needs, the 18k 2P-N can deliver industry leading continuous power from batteries to support large loads. The 18k 2P-N delivers 36kW of surge power for 10s to ensure HVAC units and motors have no problem starting in a grid-down scenario. In order to ensure adequate production, the 18k 2P-N supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This powerhouse unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10-year warranty.
Don’t rely on the grid, take control of your energy.
The Ultimate in Home Back Up Power
Rising electricity costs, greater grid instability, and growing consumer demand for resilient home energy solutions are reshaping how homeowners evaluate solar energy systems.
The Sol-Ark® 18K-2P (18K-2P-N) hybrid inverter stands at the forefront of this market transformation.
Engineered for the most grueling off-grid or back-up needs, the 18K-2P delivers
up to 18kW of continuous power directly from battery storage to support large loads and 36kVA of surge power for 10s to ensure demanding loads like HVAC units and motors have no problem starting in a grid-down scenario.
The 18K 2P supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This power-house unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10 year warranty. Don’t rely on the grid, take control of your energy.
|
All Hybrid Inverter PV Systems will need rapid shutdown. The IMO BG10P34-11 remote shutdown button is an outdoor initiation switch that can be used to trigger PV system rapid shutdown.
IMO RSD Button BG10P34-11 > Rapid Shutdown Button compatible with APsmart Rapid Shutdown System
IEEE 1547-2018 requires the local communications interface to remain available whenever the DER is operating. This indirectly creates a requirement for the IQ Gateway not to reboot during and following a low voltage ride through event. The IQ Gateway hardware was redesigned to meet this requirement so installers must only choose from the list of supported hardware and be running software versions 7.3.460 or later to be fully compliant.
|
Mechanical / General Data
|
Inverter Type
|
Residential Hybrid Inverter
|
|
Dimensions H x W x D
|
33.98" x 18.27" x 11.10"
(863 x 464 x 282 mm)
|
|
Weight
|
137 lb.
62.4 kg
|
|
Enclosure
|
IP65 / NEMA 3R
|
|
Ambient Temperature
|
-40~+60°C, > 45°C Derating
|
|
Operating Altitude
|
9843 ft (3000m)
|
|
Noise
|
50 dB
|
|
Standard Warranty
|
10 Years
|
|
Shipping
|
Freight
|
Input Data (PV)
|
Max. Supported PV Power
|
32,400 W
|
|
Max. Usable PV Power
|
28,800 W
|
|
Max. AC Coupled Input
|
19,200 W
|
|
Rated MPPT Operating Voltage Range
|
150 - 425 V
|
|
Startup Voltage
|
125 V
|
|
Max. DC Input Voltage
|
500 V
|
|
Max. Operating Input Current per MPPT
|
36 A
|
|
Max. Short Circuit Current per MPPT
|
54 A
|
|
No. of MPPT/Inputs
|
3 / 2
|
Output Data (AC)
|
Continuous Power
|
18,000 W
|
|
Surge Power (10s)
|
36,000 W
|
|
Grid Voltage/ Frequency
|
120/240; 208 0.88Un＜U＜1.1Un / 55-65
|
|
Max. Output Current
|
75 A
|
|
Max. Grid Passthrough Current
|
200 A
|
|
Max Efficiency
|
97.6%
|
|
Stackable
|
Yes; Max 12
|
Battery Input Data (DC)
|
Nominal DC Voltage
|
48 V
|
|
Operating Voltage Range
|
40 - 60 V
|
|
Capacity
|
50 — 9900 Ah
|
|
Continuous Battery Charge / Discharge Current
|
350 A
|
|
BMS Communication
|
CANBus & RS485 MODBUS
|
Protection and Certifications
|
Certifications and Listings
|
UL1741 3rd SB, UL1741 CRD-PCS, IEEE1547-2018 and interoperability
using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI,
UL1998, CSA C22.2 No. 107
|
|
PV DC Disconnect Switch
|
Integrated
|
|
Ground Fault Detection — NEC 690.5
|
Integrated
|
|
AC Output Breaker - 200A
|
Integrated
|
|
Surge Protection
|
DC Type II / AC Type II
|
Product Features
Most Backup Power
- 18 kW AC
- 200A Grid Pass-Through
Multiple Solar Options
- 6X DC Solar Ports
- 3X Full Sized MPPT
- 36A Per MPPT
Flexible Battery Choice
- 350A Battery Charger
- 2X 48V Battery Ports
- Upgrade UL9540 Options
Seamless Grid Control
- Multi-Season Time-of Day Settings
- Automatic 5ms Transfer Time
- Virtual Power Plant Ready
Generator Ready
- Dedicated GEN Port
- Generators or AC Coupling
- AutoStart Capable
Additional Features
- Future Proof Your System Through Battery Choice - Batteries wear out faster than inverters, and battery technology is still evolving. Sol-Ark’s platform includes your pick of battery partners, enabling modern battery features today with easy 48V replacement down the road.
- Max PV - 50% More Power Than The Leading Competitors
- Mega Power - Supports Over 40kW Of Solar With AC Coupling
- Surge Power - Surge To Meet Locked Rotor Amps
- Data Lock - American Engineered Data Transmission
