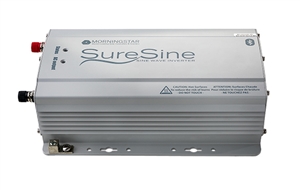

Morningstar SI-300-48-120-60-B > SureSine 300 Watt 48VDC 120VAC Pure Sine Wave Inverter with North America Type B Outlet, UL Approved

Morningstar SI-300-48-120-60-B > SureSine 300 Watt 48VDC 120VAC Pure Sine Wave Inverter with North America Type B Outlet, UL Approved



Alternative Views:


Our Price: $348.00
Warranty: 5 Years


Product Code: MORNINGSTAR-SI-300-48-120-60-B
Qty:

Description Videos Datasheet


Morningstar > SureSine 300 Watt 48VDC 120VAC Pure Sine Wave Inverter with North America Type B Outlet, UL Approved

Since 1993 the name Morningstar has been synonymous with industry-leading charge controllers, used in mission-critical applications around the world. With that heritage and reputation, “Morningstar of Inverters” has a very high bar to meet.

The (Generation 2) SureSine line was conceived for exactly one reason: meeting customer requests for a Morningstar inverter that’s equal to the quality and performance of our charge controllers. These new models are more than up to that task.

Specifications

Model SI-300-48-120-60-B
Series SureSine
Manufacturer Morningstar
Input
Type Pure Sine Wave
Rated Battery Voltage 48V
Minimum Battery Operating Voltage 42.0 V
Maximum Battery Operating Voltage 66.0 V
Output
Continuous Power@25C 300 W
Power Surge @ 40C (< 5 sec) 600 W
1 min Surge Power @40C 450 W
3 min Surge Power @40C 360 W
Mechanical
Operating Temperature Range -40° to +60°C
Peak Efficiency 92%
Output Voltage Model Options 120 +/-5% V
Output Frequency Options 50 / 60 Hz
Waveform Pure Sine Wave
Total Harmonic Distortion (THD ) <2%
Galvanically Isolated Yes
Self-Consumption:
AC Output On
AC Output Off
3.9 W
0.65 W
Electronic Protections AC Short Circuit, AC Overload, High/Low Voltage
Battery Reverse Polarity Replaceable internal fuse
AC Output Protection against Short Circuit Yes
AC Output Protection against Overload Yes
Low Voltage Alarm, Disconnect, Reconnect Yes
High Voltage Alarm, Disconnect, Reconnect Yes
High Temperature Alarm, Disconnect, Reconnect Yes
Cooling Fanless natural convection
Operational Humidity Level 100%RH non condensing
Dimensions (W x H x D) 13.1" x 7.5" x 3.8"
(332 x 190 x 96 mm)
Weight 11.5 lbs / 5.2 Kg
IP Rating IP20
Wired Communications RS485, MS-CAN
Wireless Communications Bluetooth, companion Android & iOS Apps
Data Storage 4MB / 5 years internal
Safety Certifications IEC-62109-1, IEC 62109-2, IEC 62368-1, UL 1741, UL 458(pending)
CE / UKCA Compliant Yes
Compliance IEC/EN 61000, IEC/EN 55032, IEC/EN 55011
Warranty 5 Years
Shipping Method Ground

Key Features and Benefits

  • Inverter Functions: DC/AC conversion with pure sinewave output
  • Superior industrial-grade product design and manufacturing
  • Engineered for system-level integration and communication with Morningstar charge controllers
  • Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
  • Wireless Android and iOS utility apps included for set-up and monitoring with remote devices
  • AC hardwire terminal option available on selected models (all power ranges and frequencies)
  • Remote On/Off improves safety and enables control in inaccessible locations
  • Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads
  • Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
  • Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
  • Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
  • Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
  • Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
  • Communication ports include Ethernet, USB, MS-CAN
  • Inverter can be configured either manually via a DIP switch or digitally programmed with custom setpoints.
