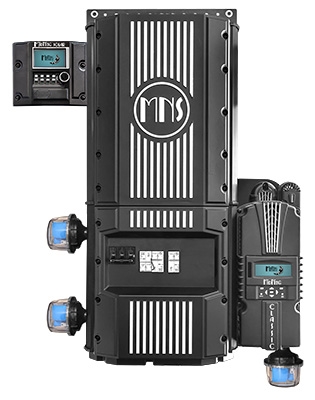

Midnite Solar Rosie Classic Pre-Wired Off-Grid System > 7000 Watt 120/240 VAC 48 VDC Off-Grid / Hybrid Inverter System | with Midnite Solar Classic-250 Charge Controller
The Rosie pre-wired System is designed by Midnite Solar's engineers with over 100 years of renewable energy off-grid experience.
The Rosie pre-wired system has a high frequency, high power design that is light weight and provides pure sine wave power!
Introducing Midnite Solar's latest innovation in power technology - the sleek and stylish Rosie inverter, designed and made right here in the United States. Powered by the latest silicon technology, this powerhouse can surge up to 3X its rating, yet remains incredibly lightweight, making it easy for a single person to install.
Not only does our Rosie inverter deliver exceptional performance, it perfectly pairs with any of our MPPT chargers to create a seamlessly integrated and visually stunning power system. Together, they deliver an unbeatable combination of power and efficiency. Trust in the reliability and sophistication of Midnite Solar's new inverter/charger to take your power system to the next level.
Specifications
|
Model
|
Rosie Classic Pre-Wired System
MNROSIE7048-CL250-PW
with Midnite Solar Classic-250 | 63 Amp 250 Volt MPPT Charge Controller
|
|
Series
|
Rosie 7048 Pre-Wired Off-Grid Inverter Systems
|
|
Manufacturer
|
Midnite Solar
|
|
Output power (continuous) at 25°C / 77°F
|
7000VA
|
|
Overload 30 min sec at 25°C / 77°F
|
8400VA
|
|
Output power (continuous) at 40°C / 104°F
|
6000VA
|
|
Maximum output charge current
|
88 A
|
|
Maximum Surge
|
15,000 VA
|
|
Output frequency / voltage
|
60Hz / Output voltage 120 or 120/240 VAC
|
|
Total harmonic distortion at rated power
|
<5%
|
|
Consumption
|
30 Watts without search and 7 watts with search
|
|
Input DC Voltage Range
|
40 to 65 VDC
|
|
Maximum Solar Charge
|
86 / 78 / 55 A
|
|
Maximum Charge from AC source
|
120 A (Can be combined with solar charging)
|
|
Charge control
|
Two of Three stage charging
|
|
Warranty
|
7 Years
|
Features:
- Lithium battery compatible
- Designed and built in Arlington, WA USA
- 7000 watts / 48 volt DC
- Extremely lite weight
- Rosie Inverter: 42 lbs.
- Rosie E-panel: 21 lbs.
- Rosie Backpanel: 8 lbs.
- Includes 2 MNSPD-300-AC for Rosie and an additional MNSPD-300-DC per Classic installed
- 2 Aux input/outputs
- 120/240 Vac output
- True sine wave inverter with charger
- Zero transfer time
- Quiet forced air cooling
- State Of Charge monitoring with MidNite Wizbang Jr. and MNGP2 display
- Die cast aluminum enclosure
- Auto gen start (two-wire generators)
- Battery Temperature Sensor included
- Remote battery voltage sensor
- Canbus communication
- 60A transfer relay
- Screened (gecko/mud dauber proof)
- Listed UL1741 and CSA NOTE: CSA pending on breaker boxes
