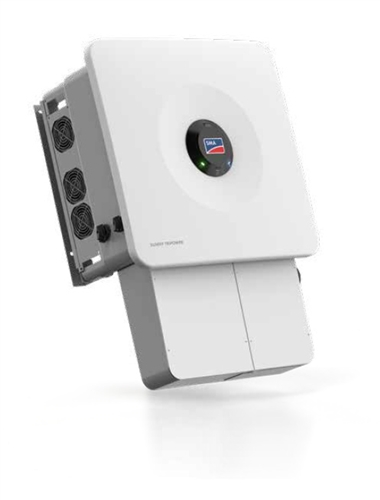

SMA Sunny TriPower X > 62,500 Watt Grid-Tie 3-Phase Commercial Inverter - with DC AFCI arc-fault protection
Integrated intelligence for future-proof system design.
Sunny Tripower X-US is the new innovative inverter solution
for commercial PV systems.
Providing five MPP trackers with SMA ShadeFix string optimization technology for optimal PV array design flexibility and maximum energy yields, the German-engineered Sunny Tripower X 62-US-80 delivers top-tier performance. SMA’s proven integrated rapid shutdown support and reliable DC AFCI arc-fault protection ensure enhanced system safety. And now with the new integrated
System Manager, powered by SMA’s ennexOS cross-sector energy management platform, Sunny Tripower X 62-US-80 becomes the centerpiece of the SMA Commercial Energy Solution for comprehensive commercial energy systems now and in the future.
Specifications
|
Model
|
STP 62-US-80
|
|
Series
|
Sunny Tripower-X-xx-US-80
|
|
Manufacturer
|
SMA
|
Mechanical
|
Type
|
Commercial Grid-Tie Inverter
|
|
Operating Temperature Range
|
-25°C to +60°C (‒13°F to +140°F)
|
|
Maximum permissible value for relative humidity (non-condensing)
|
100 %
|
|
Mounting type
|
Vertical rack / wall mount to 20° from horizontal
|
|
DC connection / AC connection
|
Staubli MC4 / Screw Terminals
|
|
Dimensions (W x H x D)
|
26.8" x 36.6" x 13.1"
(680 mm / 930 mm / 332 mm)
|
|
Device Weight
|
117 lbs.
(53 kg)
|
|
Audible noise emission (full power @ 1m and 25°C)
|
55 db(A)
|
|
Topology / cooling concept
|
Transformerless / OptiCool (forced convection, variable speed fans)
|
|
Enclosure protection rating
|
Type 4X (as per UL 50E)
|
|
Corrosive classification
|
C5
|
|
Shipping Method
|
Freight
|
|
Warranty
|
10 Years (standard) / 15 and 20 Years (Optional)
|
Input (DC)
|
Maximum array power
|
93,750 Wp STC
|
|
Max Voltage
|
1000 V
|
|
Peak Power Tracking Voltage
|
500 V - 850 V
|
|
Min Start Voltage
|
200 V / 1000 V
|
|
Minimum input voltage / initial input voltage
|
200 V / 250 V
|
|
Maximum operating input current / short-circuit current per MPP tracker
|
40 A / 50 A
|
|
MPP trackers / strings per MPP input
|
5 / 2
|
Output (AC)
|
Maximum Output Power
|
62,500 W
|
|
Maximum apparent power
|
66,000 VA
|
|
Nominal AC voltage
|
480 V / 277 V WYE
|
|
AC voltage range
|
244 V to 305 V
|
|
Rated grid frequency / range
|
60 Hz / 50 Hz to 66 Hz
|
|
Maximum output current
|
80 A
|
|
Power factor at rated power / adjustable displacement
|
1 / 0.8 leading ... 0.8 lagging
|
|
Output phasess / line connection
|
3 / 3-(N)-PE
|
|
Harmonics (THD)
|
< 3 %
|
Efficiency
Certificates and approvals
|
Certificates and approvals
|
UL 1741, UL 62109-1, UL 1699B Ed.1, PV Rapid Shutdown System Equipment in accordance
with UL 1741:2021, UL 3741, UL 1998
|
|
FCC compliance
|
FCC Part 15 Class A
|
|
Grid interconnection standards
|
UL 1741 SB, IEEE 1547:2018, CA Rule 21, HECO SRD V2.0
|
Integrated system manager
|
Maximum number of supported inverters / energy meters
|
5 / 1
|
|
Maximum system power PV inverters (nominal AC power)
|
TBD
|
|
Centralized commissioning of all devices in the system
|
Standard feature
|
|
Remote parameterization of SMA devices
|
Standard feature (via Sunny Portal powered by ennexOS)
|
|
SMA Dynamic Power Control (e.g. zero export / Volt-VAr)
|
Optional
|
|
Type designation
|
STP 62-US-80
|
Features:
Integrated system manager
- Monitoring and control for up to 5 inverters
- Remote access with Sunny Portal powered by ennexOS
- SMA Dynamic Power Control
Enhanced safety
- Integrated AC and DC disconnects
- Integrated AC type 2 and DC type 1 + 2 surge protection
- Integrated SunSpec PLC signal for module-level shutdown
- Advanced DC AFCI arc-fault protection
Maximum yields
- Five MPP trackers for flexible array design and maximum
power production
- SMA ShadeFix string level optimization
- Integrated I-V curve diagnostics
Smart monitoring, control, service
- SMA Smart Connected proactive monitoring and service solution
- SMA ennexOS cross-sector energy management platform
STPX US-80 Differentiators
- Higher Power Classes (50, 62 and 70kW 480V and 27.5kW 208V)
- Expands the performance and value of CORE 1
- Integrated System Manager
- 5 MPPTs / 2 Strings per Input
- 40A Max Usable Operating Input Current / 50A Max Isc per MPPT
- UL 3741 Compliant
- Integrated AC & DC Disconnects
- Integrated AC & DC Surge Protection
- DC AFCI Arc-Fault Protection
- SMA Smart Connected
- Shade Fix and IV Curve Diagnostics
Documentation
|
Data Sheet
|
SMA Sunny TriPower X
STP 27-US-80 (208V) / STP 50-US-80 / STP 62-US-80 / STP 70-US-80
|
|
Install Guide
|
SMA Sunny TriPower X Roof Mount Kit
|
|
|
|
 |
|
 |
|
|
|
