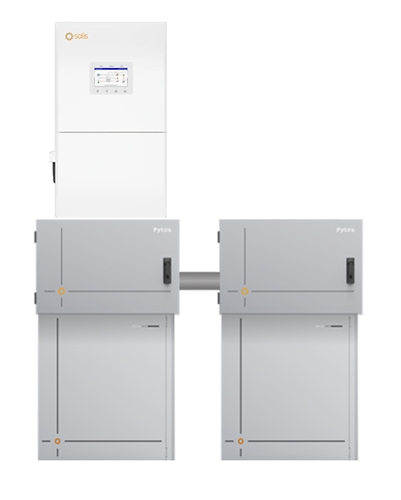

Pytes Energy V16 Battery System Bundle > 2X 16kWh Lithium Iron Home Battery System - Standalone Battery Stacks with Solis 16kW Hybrid Inverter
Pytes Energy V16 Home Battery
A high-performance wall-mounted battery engineered for all-weather energy storage. The V16 is a 51.2V LFP energy storage battery offering 16kWh of usable energy and up to 10.24kW output power. With IP66-rated enclosure, built-in heating system, and a design life of 8000 cycles, it ensures reliable, safe, and stable operation for residential and small commercial solar and backup applications.
- The All Weather Battery
- IP66 Rated Water & Dust Proof
- Integrated Heating Pad
- Fail-Safe Protections
- Integrated Battery Breaker
- Aerosol Fire Suppression
- Wide Compatibility
- Closed Loop Communication with Most Inverters
- Effortless Installation
- Wall or Ground Mounted
-Quick Commissioning
- Powerful & Robust
- 16kWh Nominal Energy
|
Model
|
V16 Battery (110402100209)
|
|
Number of Battery Module Stacks
|
2
|
|
Series
|
V16
|
|
Manufacturer
|
Pytes Energy
|
V16 Battery Specifications
|
Electrical
|
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
314Ah
|
|
Nominal Energy
|
16.077kWh
|
|
Operating Voltage Range
|
46.5V~56.8V
|
|
Recommended Charge Current
|
125A (6.4kW)
|
|
Recommended Discharge Current
|
150A (7.68kW)
|
|
Maximum Discharge Current
|
200A (10.24kW)
|
General
|
Chemistry
|
LFP (LiFePO4)
|
|
Structure
|
DC Breaker & Pre-Charge Circuit Integrated
|
|
Communication Interface
|
RS485 / CAN / WIFI / Dry Contact
|
|
Dimensions
|
27.56" x 26.42" x 10.24"
(700 mm x 671 mm x 260 mm)
|
|
Weight
|
287.7 lbs / 130.5 kg
|
|
Operating Temperature
|
Charge: 32~131°F / 0~55°C
Discharge: -4~131°F / -20~55°C
|
|
Heating Pad(Integrated)
|
Operation Temperature
0°F ~ 59°F / -18°C~15°C
|
|
Ingress Protection Ratings
|
IP66
|
|
Cycle Life*
|
8000 Cycles *
* Test Conditions: 25°C, 0.5C/0.5C, 90%DoD, 70% EOL)
|
|
Warranty
|
10 Years
|
|
Fire safety
|
Aerosol fire suppression module integrated
|
Compliance
|
UN38.3, CE, IEC62619, UL1973, UL9540, UL9540A, CEC, SGIP
|
Solis > 16,000 Watt 220/240 VAC Single Phase Residential Hybrid Storage Inverter | Solarator Series
Solarator Series:
S6-EH2P(9.6-16)K03-SV-YD-L-US LV Hybrid Single Phase Inverters without an integrated transmitter for Module Level Rapid Shutdown Receivers
|
Model
|
S6-EH2P16K03-SV-YD-L-US
|
|
Series
|
Solarator Series: Solis Single Phase Hybrid Energy Storage Inverter
|
|
Manufacturer
|
Solis
|
Mechanical / General Data
|
Type
|
Single Phase Residential Hybrid Storage Inverter
(without integrated transmitter)
|
|
Dimensions (W x H x D)
|
21.6" W x 34.6" H x 11.4" D
(550 mm W x 880 mm W x 290 mm D)
|
|
Weight
|
TBD
|
|
Topology
|
Transformerless
|
|
Operating Temperature Range
|
-31 °F to 140 °F (-25°C to 60°C)
|
|
Self-consumption (night)
|
< 30 W
|
|
Noise emission (typical)
|
<65 dB(A)
|
|
Ingress protection
|
NEMA 4X (IP66)
|
|
Cooling concept
|
Intelligent fan-cooling
|
|
Mounting type
|
Wall Bracket
|
|
Max. operation altitude
|
13,120 ft (4000 m)
|
|
Compliance
|
UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCCPart15ClassB, California Rule21, NEC 690.12-2020, CAN/CSA C22.2107.1-1
|
|
Generator support
|
Yes; up to 25 kW (with a Solis Power Hub)
|
|
Shipping Method
|
Freight
|
Input DC (PV Side)
|
Max. input voltage
|
550 V
|
|
Rated voltage
|
380 V
|
|
Start-up voltage
|
100 V
|
|
MPPT voltage range
|
100-450 V
|
|
Max. input current per MPPT
|
40 A
|
|
Max. short circuit current per MPPT
|
50 A
|
|
Number of MPPTs / Number of strings per MPPT
|
3 / 2
|
Battery (Energy Storage)
|
Battery type
|
Li-ion / Lead-acid
|
|
Battery voltage range
|
40-60 V (48 Volt Battery Bank)
|
|
Max. charge / discharge current
|
290 A
|
|
Communication
|
CAN / RS485
|
|
Number of batteries per inverter
|
See Battery Compatibility Sheet
|
Output AC (Grid Side)
|
Rated output power
|
16,000 W (16 kW)
|
|
Max. apparent output power
|
16 kVA
|
|
Rated grid voltage
|
240 V
|
|
Rated grid frequency
|
60 Hz
|
|
Rated grid output current
|
66.7 A
|
|
Max. output current
|
66.7 A
|
|
THDi
|
<3%
|
Input AC (Grid side)
|
Input voltage range
|
211 - 264 V
|
|
Max. input current
|
200 A
|
|
Frequency range
|
58.8 - 61.2 Hz
|
Output AC (Back-up)
|
Rated output power
|
16 kW
|
|
Max. apparent output power
|
2 times of rated power, 10 seconds
|
|
Back-up switch time
|
<4 ms
|
|
Phase power
|
L1/L2/N(PE), 120 V / 240 V (split phase)
|
|
Rated output voltage (L1-L2)
|
240 V
|
|
AC output voltage range
|
211 - 264 V
|
|
Rated grid frequency
|
60 Hz
|
|
Frequency range
|
55-65 Hz
|
|
Rated output current
|
66.7 A
|
|
Max. output over current protection, 10 sec
|
145 A
|
|
Max. continuous AC passthrough
|
200 A
|
|
Max. allowable phase imbalance
|
50%
|
|
Backup support configurations
|
Dedicated loads and whole-home
|
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
|
THDv (@linear load)
|
< 3%
|
Input Generator
|
Max. input power
|
24 kW
|
|
Max. input current
|
100 A
|
|
Rated input frequency
|
60Hz
|
Efficiency
|
Max. efficiency
|
TBD
|
|
CEC efficiency
|
TBD
|
|
Battery charged by PV max. efficiency
|
95%
|
|
Battery charged / discharged to AC max. efficiency
|
94.3% / 93.5%
|
Protection
|
Ground fault detection
|
Yes
|
|
Integrated AFCI (DC arc-fault circuit protection)
|
Yes
|
|
DC reverse-polarity protection
|
Yes (PV only)
|
|
Rapid Shutdown NEC 2017
|
Integrated SunSpec-certified Transmitter
|
|
Compatible RSD Receivers
|
See MLRSD Compatibility Sheet
|
|
Protection class/Over voltage category
|
I/II
|
Features
|
DC connection
|
Terminal Block (PV port) / Terminal Block (BAT port)
|
|
AC connection
|
Terminal Block
|
|
Interface
|
7.0" LCD display & Bluetooth + APP
|
|
Monitoring platform
|
SolisCloud (modbus map and API sharing available upon request)
|
|
Communication
|
RS485, Optional: Cellular, Wi-Fi, LAN
|
Additional Features
- Generator-compatible to extend backup duration during grid power outage
- Multiple inverters can operate together to form a microgrid
- Supports dual backup ports for intelligent control of critical and non-critical loads
- 10 seconds of 200% overload capability
- Automatic switchover time is < 4ms, providing seamless transitions from grid to backup
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
- The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
