Tamarack Solar UNI-PGRM/1P1-47 > Top of Pole Mount for One Solar Panel

Tamarack Solar Top of Pole Mount for One Solar Panel | for (1) module 72-IN - 96-IN long, 1 post | UNI-PGRM/1P1-47

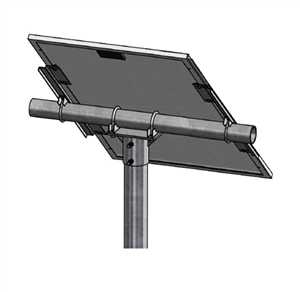

Shown in picture for reference: Technical drawing of UNI-PGRM/1P1 - PRGM Top of Pole Mount for 1 solar panel

Our Price: $312.00

Warranty: 10 Years
Compliance: Buy American

Availability: Usually Ships in 2 to 3 Business Days
Product Code: TAMARACK-UNI-PGRM-1P1-47

Qty:

Description

Datasheet

Tamarack Solar > Top of Pole Mount for One Solar Panels

Portrait Top of Pole Mount for (1) module 72-IN - 96-IN long, 1 post

Manufacturer Part Number: UNI-PGRM/1P1-47
Pole Mount for 1 Solar Panel with 1 Vertical Pole
Pole Diameter: 4"

Supports: Portrait Pole Mount for (1) module 72-IN - 96-IN long, 1 post
Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. See data sheet for more information.

VERTICAL AND HORIZONTAL SCHEDULE-40 PIPE IS NOT INCLUDED. PURCHASE LOCALLY.

Features:

Mount one solar module with an area of 25 sq-ft and a frame thickness between 1.18-inches and 2-inches*
* Larger modules can be mounted with reduced wind and snow load.
Suitable for wind speed up to 150 MPH and snow load up to 100 PSF snow load with a maximum post height of 6-feet above ground
Tilt angle adjustable from 10° to 60°
Ships by UPS - 2 Boxes
Simple one-person installation and adjustment
