OutBack GTFX3048 > 3000 Watt 48 Volt Sealed Grid-Tie Inverter

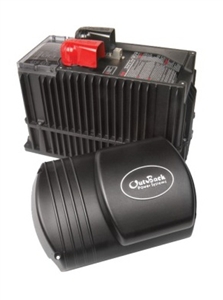

OutBack 3000 Watt 48 Volt Sealed Grid-Tie Inverter - GTFX3048



Warranty: 5 Years


Availability: This product has been discontinued.
Product Code: OUTBACK-GTFX3048


Description Datasheet


OutBack 3000 Watt Sealed Grid-Tie Inverter

Voltage: 120 VAC / 60 HZ
DC Input Voltage Range: 40 - 66 VDC
Manufacturer Part Number: GTFX3048

The GTFX models incorporates a unique die-cast aluminum, sealed housing, which keeps the electronic components cool while protecting them from the major causes of inverter failure - corrosion, dust, insect and animal damage - even temporary submersion and pressure washing. All GTFX models also now include standard an external cooling fan to improve operation in high ambient temperature conditions and increased efficiency at high power.

Features:

  • ZERO watts of AC power draw at night- automatic "silent" sell mode built in.
  • Daily energy production on par with battery-less grid-tie inverter systems.
  • Modular configuration allows easy system expansion and flexible design with up to 10 inverters interconnected.
  • Integrated communication between the inverters and the charge controllers ensure proper operation.
  • Automatically optimizes the conversion efficiency by matching the number of inverters to the amount of power being sold or used.

Specifications:

Sealed Models Vented Models
GTFX2524 GTFX3048 GVFX3524 GVFX3648
Nominal DC Input Voltage 24 VDC 48 VDC 24 VDC 48 VDC
Continuous Power Rating at 25° C 2500 VA 3000 VA 3500 VA 3600 VA
AC Voltage/Frequency 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz 120 VAC 60 Hz
Continuous AC RMS Output at 25° C 20.8 amps AC 25.0 amps AC 29.2 amps AC 30.0 amps AC
Full Idle Power ˜ 20 Watts ˜ 20 Watts ˜ 20 Watts ˜ 20 Watts
Search ˜ 6 Watts ˜ 6 Watts ˜ 6 Watts ˜ 6 Watts
Typical Efficiency 92% 93% 92% 93%
Inverting Total Harmonic Distortion 2% 2% 2% 2%
Selling 5% 5% 5% 5%
Output Voltage Regulation ‹ 2% ‹ 2% ‹ 2% ‹ 2%
Peak Maximum Output Current 70 amps AC 70 amps AC 70 amps AC 70 amps AC
RMS 50 amps AC 50 amps AC 50 amps AC 50 amps AC
Surge AC Overload Capability 6000 VA 6000 VA 6000 VA 6000 VA
5 Second 4800 VA 4800 VA 5000 VA 5000 VA
30 Minutes 3200 VA 3200 VA 4000 VA 4000 VA
AC Input Current Maximum 60 amps AC 60 amps AC 60 amps AC 60 amps AC
AC Input Voltage Range (MATE Adjustable) 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC 80 to 150 VAC
AC Input Frequency Range 58 to 62 Hz 58 to 62 Hz 58 to 62 Hz 58 to 62 Hz
DC Input Range 21.0 to 34.0 VDC 42.0 to 68.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC
Continuous Battery Charge Output 55 amps DC 35 amps DC 85 amps DC 45 amps DC
Warranty Standard 2 year / Optional 5 year Standard 2 year / Optional 5 year
Unit Weight 56 lbs (25 kg) 54 lbs (25 kg)
Shipping 67 lbs (30 kg) 62.2 lbs (28 kg)
Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)

Detailed Description

Grid Tie/Utility Interactive Capable

Able to sell solar, wind or hydro power back to the utility grid. Reduce your utility bill by spinning your meter backwards!

Provides Utility Back-Up Power

Keeps your lights on when the power goes out as well as other loads like wells, TV, fridge, computer, garage door opener, alarm, etc.

Works Automatically

Built-in transfer switch automatically disconnects the house loads from the utility grid and powers them from the inverter during an outage.

Safe and Approved

Listed to UL1741 standards as a non-islanding power inverter system for renewable energy applications.

Ultra Clean AC Power

Smooth, pure sine wave AC output waveform-not a coarse stepped sine wave or modified square wave.

Intelligent Battery Charger

Advanced charging algorithms provide fast recharging while increasing battery life up to 10 years.

Field Serviceable

Both FX and VFX inverter/chargers can be upgraded or serviced-even in the field.

Networked Communications

All OutBack products can be connected through a HUB to form a network with monitoring and control via a single MATE Display.

Capable Tech Support Help

You can call or email and ask questions of the engineers that designed your products. Tech support doesn't get any better than that.
