LONGi LR4-72HPH-445M > 445 Watt Mono Solar Panel

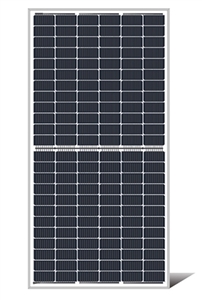

LONGi LR4-72HPH-445M > 445 Watt Mono Solar Panel



Our Price: $242.00
Warranty: 25 Years
Volts: 41.3 V

Product Code: LONGI-LR4-72HPH-445M
Qty:

Description Videos Datasheet


LONGi > 445 Watt Mono Solar Panel

144 Half-Cell Monocrystalline solar panel. 35mm clear frame, White backsheet.

Model LR4-72HPH-445M
Series LR4-72HPH 425 - 455M
Hi-MO 4m
Manufacturer LONGi

Mechanical

Type Monocrystalline
Dimensions 82.44" x 40.71" x 1.38"
Weight 51.8 lbs
Frame Anodized aluminum alloy frame
Connector Junction Box with Cable & MC4 Compatible Connectors

Electrical

Watts (STC) 445 W
Max Power Voltage (VMPP) 41.3 V
Max Power Current (IMPP) 10.71 A
Open Circuit Voltage (VOC) 49.3 V
Short Circuit Current (ISC) 11.53 A
Max System Voltage (UL) 1000 VDC

Warranty

  • 12 year Warranty for Material and Processing
  • 25 years Warranty for Extra Linear Power Output

Product Description

LONGi 440w Mono PERC w 144 Half-cut Cells (72 cell equivalent). Silver 35mm frame, white backsheet and MC4 compatible connectors w/ 55" (1400mm) cable.

The LONGi HPH Series combines High Efficiency, Low LID Mono PERC cells with Half-cut Muti Busbar Technology to improve performance and boost production. This module series has a max system voltage of 1500V and is Fire Rated as Class C (per UL790). 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading.

  • Positive power tolerance (0~ +5W) guaranteed
  • High module conversion efficiency (up to 20.5%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current
