Home > Solar Panel Mounts > IronRidge > Roof/Ground Mounts > IronRidge Knockout Tile >

IronRidge KOF-F01-T1 > Knockout Tile, Tan Flashing, Flat Profile - 1 Unit

Our Price: $12.45

Product Code: IRONRIDGE-KOF-F01-T1

Qty:

Description

Videos

Datasheet

IronRidge > Knockout Tile, Tan Flashing, Flat Profile - 1 Unit

Model	KOF-F01-T1
Series	Knockout Tile
Manufacturer	IronRidge
Finish	Tan
Quantity	1 Unit

Product Description

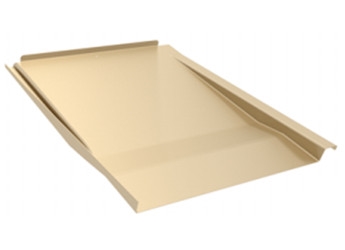

IronRidge Flat Profile Knockout Tile is a tile replacement mount that installs fast and works on roofs with flat tiles. Its simple base allows you to put it anywhere within the flashing pad on the rafter, and just punch a small hole in the flashing where it is needed—with no cutting or grinding. L-Foot included. Knockout Tile is fully tested to our rigorous standards, certified as a system with XR rail and covered by our 25-year warranty.

Features

Universal base (KOB-1L01-B1 - sold separately) - strong with compact footprint
Only 2 parts - the base and the flashing profile
Base Kit includes baseplate, lag bolt, black L-foot and hardware
Profiles available for Flat tile, S tile, or W shaped tiles
Natural tan color
2 X faster installation than traditional tile roof mounts
Near central loading on the base plate means higher pull out and lateral strength for high wind/snow regions
40% higher loading capacity and half as many roof penetrations
Completely waterproof
Listed to UL 2703 for bonding and mechanical loading, and passed both the UL 441
Section 27 rain test and TAS 100(A)-95 wind-driven rain test
25 Year Warranty when used with XR rails
