Canadian Solar CS6K-305MS-T4 > 305 Watt Mono-PERC Solar Panel - 40mm Black Frame
Canadian Solar CS6K-305MS-T4 > 305 Watt Mono-PERC Solar Panel - 40mm Black Frame



Our Price: $293.75
Volts: 32.5 V

Product Code: CANADIAN-SOLAR-CS6K-305MS-T4
Qty:

Description Datasheet

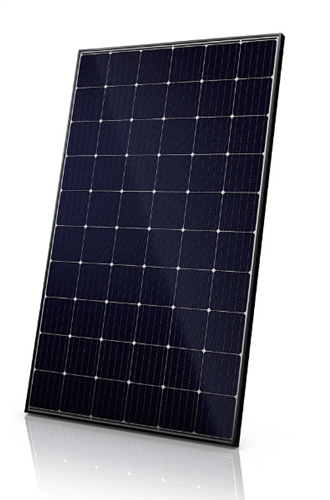

Canadian Solar > 305 Watt Mono-PERC Solar Panel - 40mm Black Frame

Monocrystalline 60 Cell Solar Panel. Black Frame, White Backsheet.

Model CS6K-305MS-T4 - Black Frame
Series SUPERPOWER Mono-PERC CS6K
Manufacturer Canadian Solar

Mechanical

Type Monocrystalline
Dimensions 65" x 39.1" x 1.57"
Weight 40.1 lbs
Frame Black Anodized aluminum
Connector Junction Box - IP68, 3 diodes
(w MC4 compatible leads)

Electrical

Watts (STC) 305 W
Max Power Voltage (VMPP) 32.7 V
Max Power Current (IMPP) 9.33 A
Open Circuit Voltage (VOC) 39.9 V
Short Circuit Current (ISC) 9.91 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 10 Years Materials and Workmanship
  • 25 Years linear power output

Documentation

Data Sheet Canadian Solar CS6K-305MS-T4
Warranty Canadian Solar Panels

Detailed Information

Canadian Solar's new 60-cell SuperPower (CS6K-305MS-T4) module comes with a power output of 300W and a 5 bus bar cell design. Canadian Solar and utilizes Mono-PERC cells in this module, significantly improving efficiency and reliability. PERC stands for Passivated Emitter Rear Contact and refers to the dielectric layer on the back of a PERC solar cell helping to reflect light, that passes through the cell and then back into the cell to generate more electrons. This process is also known as backside passivation. The CS6K-305MS offers superior low irradiance performance in the morning, in the evening and on cloudy days which increases the energy output of the panel and the overall yield of the solar system. A lower temperature coefficient is also touted for the new module which improves the module's per watt actual power output, while Light Induced Degradation (LID) is reduced by over 30%, compared to standard mono solar modules.

Canadian Solar Inc. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Features

  • 11 % more power than conventional modules
  • Excellent performance at low irradiance: 97.5 %
  • High PTC rating of up to 91.90 %
  • Improved energy production due to low temperature coefficients
  • IP67 junction box for longterm weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
