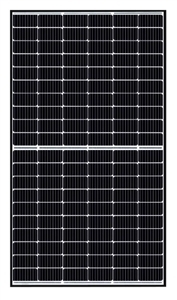

Canadian Solar CS3K-315MS > 315 Watt Mono-PERC Solar Panel - 35mm Black Frame
Canadian Solar CS3K-315MS > 315 Watt Mono-PERC Solar Panel - 35mm Black Frame



Volts: 33.1 V

Stock Status:(Out of Stock)
Availability: Currently Unavailable
Product Code: CANADIAN-SOLAR-CS3K-315MS


Description Datasheet


Canadian Solar > 315 Watt Mono-PERC Solar Panel - 35mm Black Frame

Monocrystalline 120 Half-Cell Solar Panel. Black Frame, White Backsheet.

Model CS3K-315MS - Black Frame
Series KuPower CS3K-MS
High Efficiency Mono Perc Module
Manufacturer Canadian Solar

Mechanical

Type Monocrystalline
Dimensions 65.9" x 39.1" x 1.38"
Weight 40.8 lbs
Frame Black Anodized aluminum
Connector Junction Box - IP68, 3 bypass diodes
(w T4 / MC4 compatible leads)

Electrical

Watts (STC) 315 W
Max Power Voltage (VMPP) 33.1 V
Max Power Current (IMPP) 9.52 A
Open Circuit Voltage (VOC) 39.9 V
Short Circuit Current (ISC) 10.06 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 10 Years Materials and Workmanship
  • 25 Years linear power output

Detailed Information

Canadian Solar has developed an innovative cool module design, Ku Modules (CS3K-315MS), based on Low Internal Current (LIC) module technology - the next generation of module technology.

Canadian Solar Inc. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Features

  • Low power loss in cell connection
  • Better shading tolerance
  • Minimizes micro-cracks
  • Lower hot spot temperature
  • Heavy snow load up to 6000 Pa,
    wind load up to 4000 Pa*
