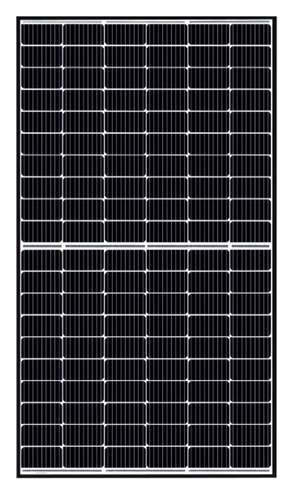

Canadian Solar CS3K-310MS > 310 Watt Mono-PERC Solar Panel - 35mm Black Frame
Monocrystalline 120 Half-Cell Solar Panel. Black Frame, White Backsheet.
|
Model
|
CS3K-310MS - Black Frame
|
|
Series
|
KuPower CS3K-MS
High Efficiency Mono Perc Module |
|
Manufacturer
|
Canadian Solar
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
65.9" x 39.1" x 1.38"
|
|
Weight
|
40.8 lbs
|
|
Frame
|
Black Anodized aluminum
|
|
Connector
|
Junction Box - IP68, 3 bypass diodes
(w T4 / MC4 compatible leads)
|
Electrical
|
Watts (STC)
|
310 W
|
|
Max Power Voltage (VMPP)
|
32.9 V
|
|
Max Power Current (IMPP)
|
9.43 A
|
|
Open Circuit Voltage (VOC)
|
39.7 V
|
|
Short Circuit Current (ISC)
|
9.98 A
|
|
Max System Voltage (UL)
|
DC 1000 V
|
Warranty
- 10 Years Materials and Workmanship
- 25 Years linear power output
Detailed Information
Canadian Solar has developed an innovative cool module design, Ku Modules (CS3K-310MS), based on Low Internal Current (LIC) module technology - the next generation of module technology.
Canadian Solar Inc. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.
Features
- Low power loss in cell connection
- Better shading tolerance
- Minimizes micro-cracks
- Lower hot spot temperature
- Heavy snow load up to 6000 Pa,
wind load up to 4000 Pa*
