Tamarack Solar FM - Flush Mount Rail Kit 90514 > 4 Module Kit - 2.3" Deep, 93" Length Rails - Black Finish
Tamarack Solar FM - Flush Mount Rail Kit 90514 > 4 Module Kit - 2.3" Deep, 93" Length Rails - Black Finish



Alternative Views:


Our Price: $296.00
Warranty: 25 Year
Compliance: Buy American


Product Code: TAMARACK-90514
Qty:

Description Videos Datasheet


Tamarack Solar FM - Flush Mount Rail Kit 90514 > 4 Module Kit - 2.3" Deep, 93" Length Rails - Black Finish

Tamarack Solar FM - Flush Mount Rail Kit
Save Time and Money

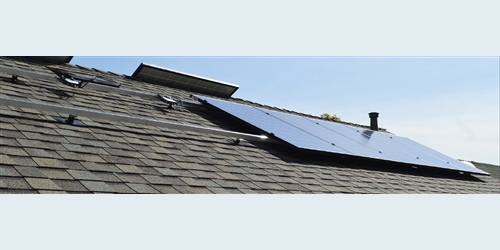

Low-cost rail-based PV module mounting system provides easy installation, simple wire management, great strength and economical shipping

4 Module Kit 2.3" Rail - Black Finish - 93" rails (90514) - box of 4 rails for 8 modules, includes 4 splices, 8 rail mounts and L-Feet, 10 50/50 clamps, 4 Channel End Clamps, 4 end caps, 12 wire clips and 2 ground clamps

Product Description

  • Kit contains all parts required to mount 4 modules with widths of up to 46-inches in portrait orientation *
    * Total length of a single row of modules is 372-inches.
  • 2.3 inch rail height for spans up to 10 feet and wind speed up to 180 MPH
  • Module clamps included in kits fit frame thickness of 30mm to 40mm; additional clamps available for modules with thicker frames
  • UPS shippable

Features

  • Best Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management.
  • Use Any Roof Attachments - Our rails mount to QuickBolt, QuickMount, FlashFoot, S-5 or any roof attachment that can be used with a 5/16 inch bolt.
  • One Wrench Size - Install with ease and minimal tools. A 1/2-inch socket fits all fasteners.
  • UL 2703 Listed - All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules.
  • PE Certified - Pre-stamped engineering letters available for most states.
