  Home > Solar Panels > SolarWorld Solar Panels >

SolarWorld SW 285 > 285 Watt Mono Black Solar Panel 4.0 - 33mm Frame - Black on Black (BoB)

SolarWorld SW 285 >  285 Watt Mono Black Solar Panel 4.0 - 33mm Frame - Black on Black (BoB)

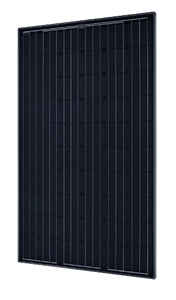

SolarWorld 285 Watt - 4.0 - 33mm Frame - 31.3 V Black on Black (BoB) Solar Panel

Our Price: $248.50
Volts: 31.3 V


Description Datasheet

SolarWorld SW 285 > 285 Watt Mono Black Solar Panel 4.0 - 33mm Frame - Black on Black (BoB)

Model SW285 Mono 4.0 Frame
Series Version 4.0 Frame Mono
Manufacturer SolarWorld


Type Mono
Dimensions 65.95" x 39.4" x 1.30"
Weight 39.5 lbs
Frame Black Anodized Aluminum
Connector MC4


Watts (STC) 285 W
Max Power Voltage (VMPP) 31.3 V
Max Power Current (IMPP) 9.2 A
Open Circuit Voltage (VOC) 39.7 V
Short Circuit Current (ISC) 9.84 A
Max System Voltage (UL) DC 1000 V


Data Sheet SolarWorld SW 285 Mono Black - 4.0 Frame
Warranty SolarWorld


  • 10 Year product warranty
  • 25 years, 80% output

Detailed Information

World-class quality
Fully-automated production lines and seamless monitoring of the process and material ensure the quality that the company sets as its benchmark for its sites worldwide.

SolarWorld Plus-Sorting
Plus-Sorting guarantees highest system efficiency. SolarWorld only delivers modules that have greater than or equal to the nameplate rated power. 25 years linear performance guarantee and extension of product warranty to 10 years SolarWorld guarantees a maximum performance degression of 0.7% p.a. in the course of 25 years, a significant added value compared to the two-phase warranties common in the industry. In addition, SolarWorld is offering a product warranty, which has been extended to 10 years.*

25 Years Linear Performance Guarantee
SolarWorld guarantees a maximum degeneration in performance of 0.7% p.a. for more than 25 years - a clear additional benefit compared with the conventional two-stage industry guarantees. In addition there is a product workmanship warranty that covers 5 years.

Industry leader
As the largest solar PV manufacturer in the United States since 1977, SolarWorld has the technology and market experience to bring you the best possible PV system.

  • Vertically integrated from raw silcon to modules, kits, and systems.
  • Developed the first grid-connected PV systems in the world.
  • The first to offer UL-listed modules.
  • The first to offer a 25-year warranty.
  • Established the SolarMaterials recycling subsidiary in 2001 and was the first to recycle whole obsolete modules.

100 percent PV
SolarWorld is dedicated exclusively to the business of solar energy and combines all stages of the solar photovoltaic (PV) value chain from raw silicon to solar wafers and cells to modules, kits and turn-key solar power plants. SolarWorld is making PV a mainstream energy choice throughout the Americas by continually improving performance while lowering equipment and installation costs for both on and off-grid applications.

30 years of experience
After 30 years of experience our systems have proven durability. With the acquisition of Shell Solar's crystalline business in 2006, SolarWorld brought onboard three decades of solar history in America. Previously known as ARCO Solar and Siemens Solar, SolarWorld's Camarillo, California factory was one of the first solar PV companies in the world. SolarWorld has since more than tripled the capacity of this facility and opened North America's largest wafer and cell factory in Hillsboro, Oregon.

Help for underdeveloped nations
SolarWorld's non-profit arm, Solar2World, brings the benefits of clean sustainable solar energy to underdeveloped areas around the world. Solar2World has already helped villagers in China and Africa gain access to electricity, and the economic and social benefits it brings. Projects in Latin America are underway now.
