  Home > Power Inverters > SMA Inverters > SMA Sunny Boy Inverters (Grid Tie) >

SMA Sunny Boy 6.0-US - SB6.0-1SP-US-40 > 6000 Watt 208 / 240 Volt Single Phase Grid-Tie Inverter

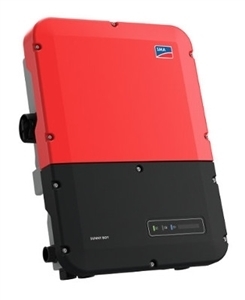

SMA Sunny Boy 6.0-US - SB6.0-1SP-US-40 > 6000 Watt 208 / 240 Volt Single Phase Grid-Tie Inverter



Our Price: $1,376.35
Warranty: 10 Years
Compliance: Buy American

Product Code: SMA-SB-6.0-US
Qty:

Description Datasheet


SMA Sunny Boy > 6.0 kW 208 / 240 Volt Single Phase Grid-Tie Inverter

Specifications

Model SB6.0-1SP-US-40
Series Sunny Boy
Manufacturer SMA

Mechanical

Type Central Grid-Tie
Operating Temperature Range -25° C to +60° C
Enclosure NEMA 3R
Cooling OptiCool
Dimensions (W x H x D) 21.1" x 28.5" x 7.8"
Weight 57 lbs
Shipping Method Freight

Input (DC)

Max. usable DC power 5400 W / 208 V
6200 W / 240 V
Max Voltage 600 V
Rated MPP voltage range 220 V - 480 V
MPPT operating voltage range 100 V - 550 V
Min. DC voltage / start voltage 100 V / 125 V
Max. operating input current per MPPT 10 A
Max. short circuit current per MPPT 18 A
umber of MPPT tracker / string per MPPT tracker 3 / 1

Output (AC)

AC nominal power 5200 W / 208 V
6000 W / 240 V
Max. AC apparent power 5200W / 208 V
6000 W / 240 V
Nominal voltage / adjustable 208 V
240 V
AC voltage range 183 – 229 V / 208 V
211 - 264 V / 240 V
AC grid frequency 60 Hz / 50 Hz
Max. output current 25.0 A / 208 V
25.0 A / 240 V
Power factor (cos ϕ) 1
Output phases / line connections 1 / 2
Harmonics < 4 %

Documentation

Data Sheet SMA Sunny Boy-US Series
User's Manual SMA Sunny Boy-US Series
Warranty SMA

Features

The Sunny Boy-US series features a wealth of improvements and joins SMA’s lineup of field-proven solar technology backed by the a fantastic service team. The world’s first Secure Power Supply now delivers up to 2,000 W of opportunity power when the grid goes down and the sun is shining. Installation has never been easier thanks to SMA’s Installation Assistant, direct access via smartphone, and integrated DC disconnect.

The Sunny Boy’s multiple independent input channels, each with SMA’s OptiTrac™ Global Peak, mean hundreds of stringing configurations for flexible system design while solving the challenges of complex roofs and shading.
