S-5! VersaGard™ > L-Foot

VersaGard™ can be used to mount virtually anything to a face-fastened roof system and is compatible with almost any trapezoidal, face-fastened profile. No messy sealants to apply. No chance for leaks. The VersaGard™ comes with factory-applied sealant already in the base for a water-tight attachment.

Installation is simple! VersaGard is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e. wood decking, wood or steel purlins, or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align, and apply. Secure through the pre-punched holes using the appropriate screws for the supporting structure.

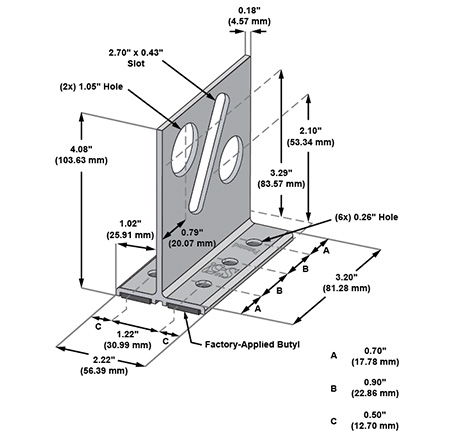

While the circular holes in the vertical part of the bracket support 1" pipes, the diagonal slot provides flexible support for PV installations via the use of 3/8", M8, or M10 bolts.

NOTE: S-5! VersaGard L-Foot ONLY, pipes or tubing not included.
Pipes or tubing can be purchased from a local hardware store.


Product Brochure S-5! VersaGard™
Install Guide S-5! VersaGard™

Solar Applications

VersaGard can also be used in lieu of an L-foot to support the installation of photovoltaic panels. VersaGard works with most rail or racking systems, and can be oriented parallel or perpendicular to the roof line.

Snow Retention Applications

VersaGard can dramatically reduce the risks associated with snow avalanches sliding off of roofs, dumping tons of snow onto anything in its path, at an amazingly affordable price. A VersaGard pipe snow retention system functions without cluttering the lines of the roof and is dramatically stronger than adhesively-mounted snow guards.
