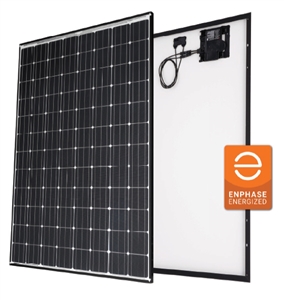

Panasonic VBHN330SA17E > 330 Watt AC Solar Panel with Enphase IQ7X 320 Watt Micro Inverter - Black 40mm Frame
Panasonic VBHN330SA17E > 330 Watt AC Solar Panel with Enphase IQ7X 320 Watt Micro Inverter - Black 40mm Frame


Stock Status:(Out of Stock)

Availability: This product is no longer available.
Product Code: PANASONIC-VBHN330SA17E

Description Datasheet

Panasonic > 330 Watt AC Solar Panel with Enphase IQ7X 320 Watt Micro Inverter - Black 40mm Frame

96 Cell with Enphase IQ7X 320 Watt Micro Inverter, 40mm Black Frame, White Backsheet

Model VBHN330SA17E (N330E)
Series Photovoltaic Module HIT®
Manufacturer Panasonic


Type Mono
Dimensions 62" x 41.5" x 1.6"
Weight 42.99 lbs
Frame Black Anodized
Connector MC4


Peak Power Output 320 W
Maximum Continuous Output Power 315VA
Nominal (L-L) voltage/range 240V / 211 – 264V
Maximum Continous Output Current 1.31A @ 240VAC / 1.51A @ 208VAC
Maximum Units per 20 A (L-L) branch circuit 12 @ 240VAC / 10 @ 208VAC
Nominal Frequency 60Hz
Extended Frequency Range 47 – 68Hz
AC Short Circuit Fault Current Over 3 Cycles 5.8 Arms
Overvoltage Class AC Port III
AC Port Backfeed Current 0A
Power Factor Setting 1.0
Power Factor (adjustable) 0.7 leading / 0.7 lagging
CEC Weighted Efficiency 97.5% @ 240V / 96.5% @ 208V


  • Module and Microinverter: 25 Years, Workmanship, Materials and Power. Output (Linear)

Detailed Information

Panasonic HIT® AC Modules combine the efficiency of HIT solar panels with the intelligence of seventh-generation Enphase IQ 7X Microinverters. Delivers a smart grid-ready module with high efficiency and high power output for residential solar systems.

HIT heterojunction technology uses dual ultra-thin amorphous silicon layers which reduce electron losses and produce greater power output than conventional panels.


  • High Efficiency at High Temperatures
    As temperature increases, HIT® continues to perform at high levels due to the industry leading temperature coefficient of -0.258% /⁰C. No other module comes close to our temperature characteristics. That means more energy throughout the day.
  • Quality and Reliability
    Panasonic’s vertical integration, over 20 years of experience manufacturing HIT® and 20 internal tests beyond those mandated by current standards provides extreme quality assurance.
  • Low Degradation
    HIT “N-type” cells result in extremely Low Light Induced Degradation (LID) and zero Potential Induced Degradation (PID) which supports reliability and longevity. This technology reduces annual degradation to 0.26% compare to 0.70% in conventional panels, guaranteeing more power for the long haul.
  • TripleGuard 25-Year Warranty
    TripleGuard covers your solar panel system’s performance, workmanship, parts, and labor for 25 years**. Whether in year three or year 25, rest assured your Panasonic warranty protection will be there when you need it.
  • Higher Efficiency 19.7%
    Enables higher power output and greater energy yields. HIT® provides maximum production for your limited roof space.
  • Enhanced Frame Design
    A 40mm frame increases durability and strength, handling loads of up to 5400Pa. A special water drainage system prevents rain water accumulation and eliminates water stains from the panel surface, allowing optimal sunlight penetration and panel efficiency.
