  Home > Solar Panels > Mission Solar >

Mission Solar MSE375SQ9S > 375 Watt Mono Solar Panel - 40mm Frame
Mission Solar MSE375SQ9S > 375 Watt Mono Solar Panel - 40mm Frame



Our Price: $276.00
Compliance: ARRA Compliant
Proudly assembled in the USA
Volts: 39.76 V

Product Code: MISSION-SOLAR-MSE375SQ9S
Qty:

Description Datasheet

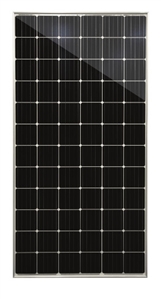

Mission Solar > 375 Watt Mono Solar Panel

Clear 40mm Frame, White Backsheet 72 Cell, 5 busbar Mono Solar Panel

Model MSE375SQ9S
Series MSE PERC 72
(72 cell, 5 busbar)
Manufacturer Mission Solar

Mechanical

Type Monocrystalline
Dimensions 78.23" x 39.33" x 1.58"
Weight 47.6 lbs
Frame Clear Anodized aluminum alloy
Connector MC4

Electrical

Watts (STC) 375W
Max Power Voltage (VMPP) 39.76 V
Max Power Current (IMPP) 9.432 A
Open Circuit Voltage (VOC) 48.16 V
Short Circuit Current (ISC) 9.826 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 25 year linear warranty, 80% output

Detailed Information

Outstanding performance with PERC
Passivated Emitter Rear Contact (PERC) technology provides excellent power output through advanced cell structure.

Best in class quality
Mission Solar Energy production lines are fully automated and include multiple quality checks throughout the production process including 2X EL Testing, 100% Visual inspection, and positive binning.

Proven reliability and bankability
Mission Solar Energy panels have been tested by independent testing centers to meet and exceed IEC standards. Our panels are deployed in projects across North America.

Proudly assembled in the USA
Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Mission Solar's supply chain includes local and domestic vendors increasing their impact to the U.S. economy.

Features

  • Class Leading Output: 375W power
  • Advanced Technology: PERC and 5 busbars drive >18% module efficiency
  • Reduced System Costs: Robust design, 1000V and simple installation
  • Certified Reliability: Tested to UL1703 & IEC standards, PID Resistant
  • 5631 Pa snow load, 185 mph wind rating
  • Buy American Act
