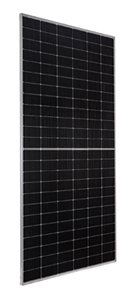

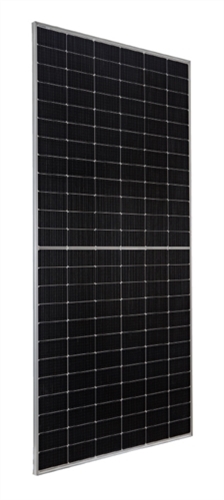

Mission Solar > 590 Watt BiFacial Mono Solar Panel - 35mm Frame | Pallet Quantity - 31 Solar Panels
Please call us at (760) 597-0498 x 1 for a quote on container pricing, or more information on volume discounts.
35mm Anodized aluminum Frame, N-type TCOPCON BiFacial 144 Half-Cell, Mono Solar Panel
Solar Built for the Long Haul
Mission Solar Energy is headquartered in San Antonio, Texas. This product is tailored for commercial and utility applications. Every Mission Solar Energy solar module is certified and surpasses industry standard regulations, providing excellent performance over the long term. Mission Solar Energy is a proud member of the OCI family of companies
|
Model
|
MSH10-590HN4G
|
|
Series
|
N-type TOPCON Monocrystalline
Bifacial 144HC
(144 half-cut cell)
|
|
Manufacturer
|
Mission Solar - America’s Module Company
|
|
Pallet Quantity
|
31 Solar Panels per Pallet
|
Mechanical
|
Type
|
Monocrystalline
|
|
Dimensions
|
89.69" x 44.65" x 1.378"
(2,278mm x 1,134mm x 35mm)
|
|
Weight
|
71.65 lbs (32.5 kg)
|
|
Frame
|
Clear Anodized aluminum alloy
|
|
Connector
|
47" cable with MC4 Compatible Connectors
|
Electrical
|
Watts (STC)
|
590 W
|
|
Max Power Voltage (VMPP)
|
43.5 V
|
|
Max Power Current (IMPP)
|
13.59 A
|
|
Open Circuit Voltage (VOC)
|
51.7 V
|
|
Short Circuit Current (ISC)
|
14.55 A
|
|
Max System Voltage (UL)
|
DC 1500 V
|
Certifications and Tests
Warranty
- Degradation guaranteed not to exceed 1% in year 1 and 0.4% annually from years 2 to 30 with 87.4% guaranteed in year 30.
For more information, visit
www.missionsolar.com/warranty
Features
Fair Trade Practices
- Free of forced labor at all stages of the supply chain
- Not subject to AD/CVD tariffs or investigations
Certified Reliability
- Tested to UL 61730
- PID resistant
Advanced Technology
- SMBB Technology
- N-Type Cell
- Ideal for utility and commercial applications
Extreme Weather Resilience
- Up to 5,400 Pa front load & 2,400 Pa back load
- Tested load to UL 61730
- Hail tests results exceed 25mm at 23 m/s
|
|
|
 |
|
 |
|
|
|
