LG Solar - LG335N1C-A5-AWB > 335 Watt NeON™2 Solar Panel, Cello technology - Matte Black Frame
LG Solar - LG335N1C-A5-AWB > 335 Watt NeON™2 Solar Panel, Cello technology - Matte Black Frame



Warranty: 25 Years
Volts: 34.1 V

Stock Status:In Stock
Availability: This product is not longer available.
Product Code: LG335N1C-A5-AWB


Description Datasheet

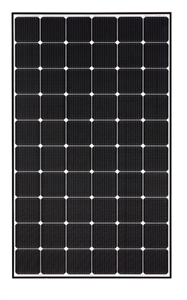

LG Solar > 335 Watt NeON™2 Solar Panel - Cello technology - Matte Black Frame

40mm Matte Black Frame, White Backsheet.
60 Cell, high efficiency monocrystalline PV module. Double Side Cell Structure (Neon 2, adopts Cello technology)

Model LG335N1C-A5-AWB
Series NeON™2
Manufacturer LG Solar

Mechanical

Type Monocrystalline / N-type
Dimensions 66.38" x 40" x 1.57"
Weight 39.68 lbs
Frame Matte Black Anodized Aluminum
Connector MC4

Electrical

Watts (STC) 335 W
Max Power Voltage (VMPP) 34.1 V
Max Power Current (IMPP) 9.83 A
Open Circuit Voltage (VOC) 41.0 V
Short Circuit Current (ISC) 10.49 A
Max System Voltage DC 1000 V

Warranty

  • 15 year product warranty
  • NEW Linear warranty*
    1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years

Detailed Information

LG’s new NeON™ 2 module, LG335N1C-A5-AWB, adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. LG NeON™ 2 demonstrates LG’s efforts to increase customer’s values beyond efficiency. It features enhanced warranty, durability, performance under real environment, and aesthetic design suitable for roofs.

Features

  • Enhanced Performance Warranty
    LG330N1C-A5-AWB has an enhanced performance warranty. The annual degradation has fallen from -0.7%/yr to -0.6%/yr. Even after 25 years, the cell guarantees 2.4%p more output than the previous LG NeON™2 Black modules.
  • High Power Output
    Compared with previous models, the LG NeON™ 2 Black has been designed to significantly enhance its output efficiency making it efficient even in limited space.
  • Aesthetic Roof
    LG NeON™ 2 Black has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product can increase the value of a property with its modern design.
  • Outstanding Durability
    With its newly reinforced frame design, LG has extended the warranty of the LG NeON™ 2 Black for an additional 2 years. Additionally, LG NeON™2 Black can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.
  • Better Performance on a Sunny Day
    LG NeON™ 2 Black now performs better on sunny days thanks to its improved temperature co-efficiency.
  • Double-Sided Cell Structure
    The rear of the cell used in LG NeON™ 2 Black will contribute to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power.
  • Aesthetic Roof
    LG NeON™ 2 has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product may help increase the value of a property with its modern design.
