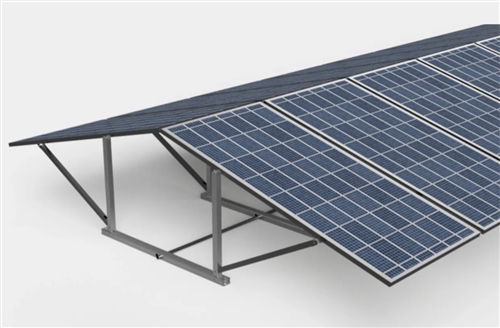

IntegraRack > East/West 15° Fixed Angle BallastRack, Double Solar Panel Rack - Aircraft Grade Aluminum | Mill Finish

East/West fixed 15° double solar panel racking system that racks two solar panels per rack frame. Our most cost effective racking system per kW, with savings on both materials and labor. Works only with 450-900W solar panels that are over 64" long. East/West systems deployed in southern parts of the US will see extended hours of solar energy production and substantially higher energy production on cloudy days, comparted to higher angle South-facing racks. This system includes coastal rated 100% stainless steel IR-F2 solar module clamps and hardware for maximum corrosion resistance.

Items Included with IR Seasonably Adjustable BallastRack™ Solar Module Rack

• ( 8 ) IR-F2 Flange Clamp Bonding Bracket
• ( 4 ) M8-1.25x90mm Carriage Bolts
• ( 2 ) M8-1.25x55mm Carriage Bolts
• ( 8 ) M8-1.25 Serrated Nuts
• ( 4 ) M8-1.25x16mm Thread Cutting Hex Head Bolts
• ( 2 ) IR-EW15 Ridge Coupler Brackets

Product Features

• Coastal Rated Product with 100% Stainless Steel Hardware
• Building Permit NOT Required For Most Installations
  See Documentation
• Built To Withstand Hurricane Force Winds Up To 180 MPH
• Extends Energy Production Hours Throughout The Day
• Capable of Racking 2 Very Large Commercial Solar Panels with Each Rack Frame
• Extreme Corrosion Resistance (Costal Rated) With Stainless Steel Hardware
• Multiple Mounting Options Available
• No Concrete Footings, Earth Augers, or Post Pounding Required
• Incredibly Fast Installation Times With No Rail Systems
• Incredibly Low Cost Per Watt
• 20-40% Better Energy Production On Cloudy Days VS High Angle South Facing Arrays
