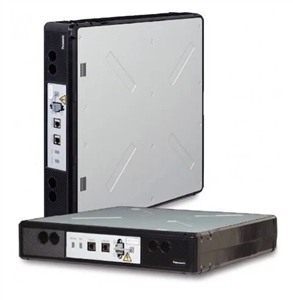

Generac > PWRcell Mod - 3.38kWh Battery Module - Li-Ion - 2.85 kWh usable power

Manufacturer Part Number: A0000391219 / PWRcell Mod

No other smart battery offers the flexibility of PWRcell. Whether for backup power or smart energy management, the PWRcell battery has power and capacity options for every need, without sacrificing flexibility or function.

The PWRcell battery series allows system owners the flexibility to scale from the economical 8.6kWh PWRcell 9 to the massive 17.1 kWh PWRcell 17 by adding additional PWRcell battery modules, the gold standard in storage.

Minimum of 3 Generac A0000391219 PWRcell Battery Modules (8.6 usable kWh) needed to use inside the Generac APKE00007 PWRcell Battery Enclosure. Able to be expanded to 6 PWRcell Battery Modules in a single PWRcell Battery Enclosure (17.1 usable kWh).

Connect as many as two 2 PWRcells Battery Enclosure to a single PWRcell Inverter for up to 34.2kWh of storage.

PWRcell Battery Design

PWRcell is a modular smart battery platform that allows for a range of configurations to suit any need, small or large. PWRcell can be built in capacities ranging from 8.6-17.1kWh. When needs change, PWRcell can be upgraded with additional modules.Use the chart above to understand what components you need for your chosen PWRcell configuration.

Upgrading PWRcell

Inside of the PWRcell battery, the PWRcell battery modules are stacked 2-deep on three levels, allowing for up to six modules to be connected in series. Upgrade an existing PWRcell battery by adding modules and a module spacer (HMSK) if required. PWRcell 9 and PWRcell 15 require a module spacer.

Features

  • Connect as many as two 2 PWRcells to a single PWRcell Inverter for up to 34.2kWh of storage
  • Best-in-class battery backup power
  • Plug-and-play with PWRcell Inverters and PV Links
  • Time-of-use (TOU) and zero-export ready
  • Residential and commercial application ready

Specifications

Model A0000391219
Series PWRcell
Manufacturer Generac

Mechanical

Type Grid Interactive / Peak Shaving / Battery Back-up
Operating Temperature Range -10 to 45 C*
Recommended Temperature Range 13 to 30 C
Dimensions (W x H x D) 68" x 22" 10"
Weight 93.33 lbs per battery module
Shipping Method Freight
