  Home > Watts >

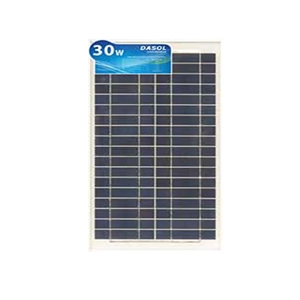

Dasol DS-A18-30 > 30 Watt Solar Panel
Dasol DS-A18-30 > 30 Watt Solar Panel



Warranty: 3 Years
Volts: 18 V

Stock Status:(Out of Stock)
Availability: Currently Unavailable
Product Code: DASOL-DS-A18-30


Description Datasheet


Dasol DS-A18-30 > 30 Watt Solar Panel

White Backsheet, Clear Aluminum Frame

Model DS-A18-30
Series DS-A18
Manufacturer Dasol

Mechanical

Type Poly
Dimensions 25.6" x 13.8" x 1.0"
Weight 5.95 lbs
Frame Clear Anodized Aluminum
Connector Junction Box

Electrical

Watts (STC) 30 W
Max Power Voltage (VMPP) 18 V
Max Power Current (IMPP) 1.67 A
Open Circuit Voltage (VOC) 22.3 V
Short Circuit Current (ISC) 1.82 A
Operation Temperature Range -40 to 85C
Maximum System Voltage 600 VDC

Documentation

Data Sheet Dasol DS-A18-30

Warranty

  • Product Warranty: 3 Years Limited Warranty
  • Output Warranty: 80% in 25 years
