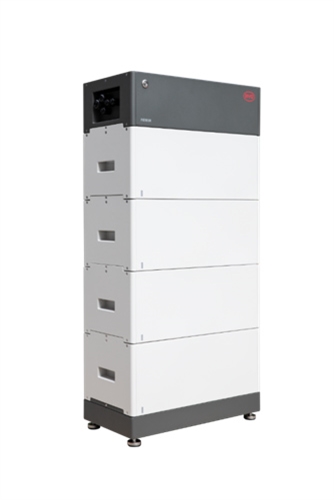

BYD Battery-Box HVL 16.0 > 16.0 kWh Premium HVL Home Batteries - 4 Modules
BYD Battery-Box HVL 16.0 > 16.0 kWh Premium HVL Home Batteries - 4 Modules

Warranty: 10 Years

Stock Status:(Out of Stock)

Availability: This item has an indefinite lead time, due to import complications.
Call for availability.
Product Code: BYD-BATTERY-BOX-HVL-16.0


Description Datasheet


BYD Battery-Box HVL 16.0 > 16.0 kWh Battery-Box Premium HVL - 4 Modules

The battery for all applications - in direct High Voltage

Battery-Box Premium HVL
One Battery-Box Premium HVL is composed of 3 to 8 HVL battery modules that are connected in series to achieve a usable capacity of 12 to 32 kWh.

Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVL allows a maximum capacity of 96 kWh. Ability to scale by adding HVL modules later.

Model Battery-Box HVL 16.0
Number of Battery Modules 4
Series Battery-Box HV
Manufacturer BYD

Mechanical

Battery Module HVL (4 kWh, 51.2 V, 99.2 lb)
Usable Energy [ 16 kWh
Max Output Current 50 A
Peak Output Current 75 A, 3 s
Nominal Voltage 204.8 V
Operating Voltage 160~230 V
Dimensions (H x W x D) 48.3" x 23.0" x 11.7"
Weight 429.9 lbs
Operating Temperature 14 °F to 122 °F
Battery Cell Technology Lithium Iron Phosphate (cobalt-free)
Communication CAN/RS485
Enclosure Protection Rating NEMA 3R
Round-trip Efficiency ≥ 96%
Certification UL9540A/ UL1973/ IEC60730/ FCC/ UN38.3
Applications ON Grid/ ON Grid+Backup/ OFF Grid
Warranty 10 Years
Compatible Inverters Refer to BYD Battery-Box Premium HVL Compatible Inverter List
Shipping Method Freight

Detailed Information

The battery for all applications - in direct High Voltage

Features

  • Capable of High-Powered Emergency-Backup and Off-Grid Functionality
  • Highest Efficiency Thanks to a Real High-Voltage Series Connection
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
  • Compatible with Leading High Voltage Battery Inverters
  • Highest Safety Standards
