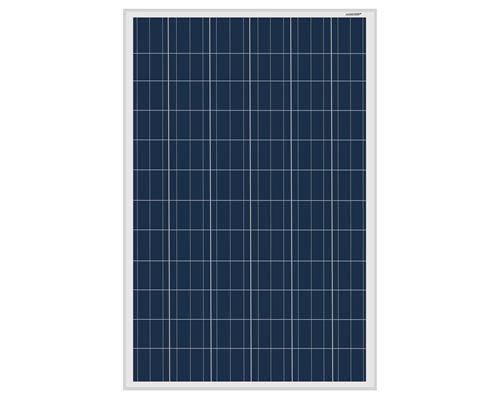

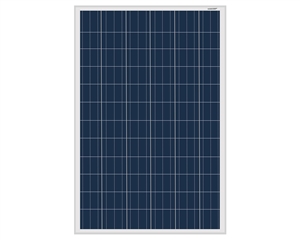

Synthesis Power 200 Watt 12V Off-Grid Solar Panel
72 Cell 12V Poly Crystalline Solar Module
|
Model
|
SP200P
|
|
Series
|
SP
|
|
Manufacturer
|
Synthesis Power
|
Mechanical
|
Type
|
Poly
|
|
Dimensions
|
58.58" x 36.30" x 1.38"
|
|
Weight
|
44.1 lbs
|
|
Frame
|
Anodized Aluminum
|
|
Connector
|
Junction Box
|
Electrical
|
Watts (STC)
|
200 W
|
|
Max Power Voltage (VMPP)
|
17.8 V
|
|
Max Power Current (IMPP)
|
11.24 A
|
|
Open Circuit Voltage (VOC)
|
21.36 V
|
|
Short Circuit Current (ISC)
|
12.59 A
|
|
Max System Voltage
|
DC 1000 V
|
Warranty
- 12 Year Product Warranty
- 30 Year Linear Power Warranty (80%)
Documentation
Detailed Information
With a power output of 200W, this off-grid solar panels
are very versatile, and can be used on camping vans,
mountain huts, boats and for every other off-grid application.
Our off-grid panels also ensure high performances even
when it comes to gene rating electricity at low voltage
(12V), and are therefore particularly suitable for public lighting.
These panels represent the ideal choice for installations in secluded or isolated areas.
Features
- High reliability with guaranteed 0 to +5W power output tolerance
- 30 Year Linear Power Warranty
12 Year Product Warranty
- Excellent performance under different light conditions
- IP65 JUNCTION BOX Able to withstand the most varied atmospheric conditions
- Passing mechanical load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure
- Compact and ultra-light easy to handle aluminum 35mm thick frame
