  Sanyo 195 Watt Bifacial HIT Power Solar Panel 40 Volt > HIP-195DA3

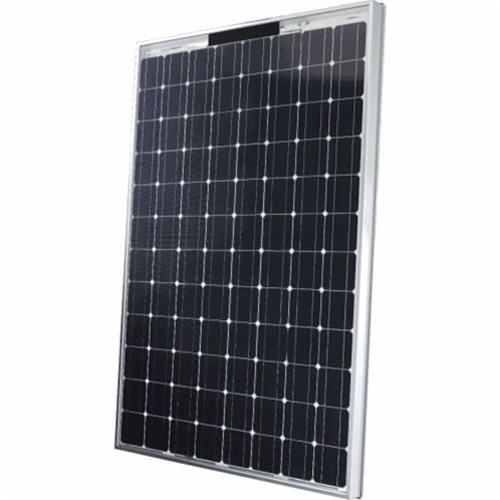

  Sanyo HIP-195DA3, Bifacial HIT Power Solar Panel, 195 Watt, 40 Volt
Sanyo HIP-195DA3

Our Price: $987.95


Product Code: SANYO-HIP-195DA3
Qty:


Description

Sanyo HIP-195DA3, Bifacial HIT Power Solar Panel, 195 Watt, 40 Volt

Detailed Description:

About Sanyo

Capable of generating electricity from the sun which is an unlimited, clean source of energy, photovoltaic power generation has recently attracted a great deal of attention. As a pioneer in photovoltaic power generating systems, Sanyo has consistently taken the lead in research and development. Sanyois dedicated to contributing towards more comfortable living for all and to promoting co-existence with the global environment.

More than 30 years of experience in solar technology has earned Sanyo a reputation for reliability among customers.

Proprietary Technology
SANYO HIT (Heterojunction with Intrinsic Thin layer) solar cells are hybrids of single crystalline silicon surrounded by ultra-thin amorphous silicon layers.

Power from Both Sides
The back side of a SANYO HIT Double solar panel generates electricity from ambient light that has passed through the panel or is reflected off surrounding surfaces, while the front side operates simultaneously, which results in higher power generation compared to standard single-sided HIT panels at any angle and direction.

Temperature Attributes
As temperatures rise, SANYO HIT Double solar panels produce more electricity than conventional crystalline silicon solar panels at the same temperature, because of their low temperature coefficient.

High Efficiency
SANYO HIT Double solar maximize power within a fixed amount of space. Depending on your installation design and location's albedo, HIT Double solar panels can capture additional back side ambient light, increasing system performance. These powerful panels are ideal for grid-connected solar systems, areas with performance based incentives, and renewable energy credits.

Unique Structure
SANYO HIT Double solar panels have a double glass structure that enhances aesthetics and allows brilliant light and shadow to shine through the panels. The panels have a silver anodized aluminum, double walled frame for extra strength. The panels come pre-equipped with a touch-safe junction box, lead wires, MCTM plug-n-play connectors, and unique rails - all of which help to minimize support BOS materials, labor, installation time and costs.

Valuable Features
SANYO HIT Double solar panels have no moving parts and weigh less than 51 pounds. The panels come with a 20-Year Limited Power Output Warranty and a 2-Year Limited Product Workmanship Warranty. Panels are UL 1703 safety rated for wind, fire and hail - Class A. Unique eco-package minimizes cardboard waste deposited in customer’s trash.

Quality, & Ratings
SANYO silicon wafers are manufactured in the USA, and the panels are assembled in Mexico at an ISO 9001 and 14001 certified factory. All panels undergo inspection to ensure strict compliance with electrical, mechanical, environmental, and visual criteria. SANYO’s conservative model ratings grant more kWh per rated kW, and assist with accurate predictions of performance and economics.

IMPORTANT HITR Double bifacial solar panel's Rated Power (Pmax)1 is measured at Standard Test Conditions (STC). STC does not include power produced from the backside bifacial effect of the panels. Bifacial panels may produce up to 130% of their STC rating, dependant upon installation design and location albedo - the site's reflectance rate. Use caution when selection, calculation and sizing system components to account for the increase in power.

To Maximize Power
1. Elevate panels above a surface as much as possible, to allow reflected and ambient light beneath the panels
2. Place panels over light-colored surfaces
3. Do not allow support rails to shade the panel's back face.

Application Possibilities
  • Architectural, Awnings, Balconies, Bus Shelters, BIPV
  • Deck & Porch Coverings, Canopies, Carports, Facades
  • Fences, Siding, Trellises, Tracking Systems, Vertical...
Electrical Specifications:
Model Number: HIP-190DA3
Rated Power Voltage (Pmax)1: 190 Watts
Max. Power Voltage (Vpm): 55.3 Volts
Max. Power Current (Ipm): 3.44 Amps
Open Circuit Voltage (Voc): 68.1 Volts
Short Circuit Current (Isc): 3.70 Amps
Minimum Power (Pmin): 180.5 Watts
Maximum System Voltage (Vsys): 600 Volts
Series Fuse: 15 Amps
Temperature Coefficient (Pmax): -0.30 %/°C
Temperature Coefficient (Voc): -0.170 V/°C
Temperature Coefficient (Isc): -0.85 mA/°C
Electrical Tolerance: +10%/-5%
Warranted Tolerance: +10%/0%
Cell Efficiency: 18.8%
Module Efficiency: 15.7%
Power per square foot: 14.6 Watts

Mechanical Specifications
Internal Bypass Diodes: 4 Bypass Diodes
Module Area: 13.06 ft2 (1.21 m2)
Weight: 50.7 lbs. (23 kg)
Dimensions (LxWxH): 53.2" x 35.35" X 2.36" (1351 X 898 x 60 mm)
Cable Lengths: 39.4" each (1000 mm)
Cable Size / Connector Type: #12 AWG / MCTM Connectors
Static Load Wind / Snow: 50 PSF (2400 Pa) / 39 PSF (1876 Pa)
Pallet Quantity: 20 modules
Pallet Dimensions (LxWxH): 54.3" x 36" x 70.1" (1379 x 912 x 1781 mm)
Pallet Weight: 1014 lbs (460 kg)
Quantity per 20'/40'/53' Container: 200 pieces / 420 pieces / 540 pieces

Safety Rating & Limited Warranty
Hail Safety Impact Velocity: 1" (25 mm) diameter hail stone at 52 mph (23 m/s)
Fire Safety Classification: Class A
Safety & Rating Certifications: UL 1703, cUL, CEC
Class C fire rating
Limited Warranties: 20-Years Power Output / 2-Years Workmanship

1 STC: Cell Temperature 25°C, AM1.5, 1000W/m2
Note: Specifications and products above may change without notice 5/1/07
