OutBack Power FP1 VFXR3024E > 3000 Watt 24V 230VAC International FLEXpower ONE Fully Pre-Wired & Factory Tested Single Inverter System

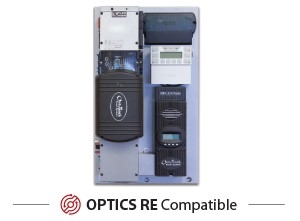

OutBack FP1 VFXR3024E > 3000 Watt 24V 230VAC International FLEXpower ONE Fully Pre-Wired & Factory Tested Single Inverter System



Our Price: $3,472.36

Product Code: OUTBACK-FP1-VFXR3024E
Qty:

Description Data Sheet


OutBack Power FP1 VFXR3024E > 3000 Watt 24V 230VAC International FLEXpower ONE Fully Pre-Wired & Factory Tested Single Inverter System

OutBack’s pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR A-Series Grid/Hybrid inverter/chargers.

Ships in approximately 3-4 Weeks

With these new Inverter/Chargers, OutBack's FLEXpower ONE systems are further capable of off-grid or grid-connected operation in a single unit. This means the most advanced Grid/Hybrid inverter features are now available on the industry’s most trusted and proven systems platform, for unmatched flexibility and value. Some of the new features and technologies include:

Specifications

Model FP1 VFXR3024E
Series FLEXpower ONE FXR
Manufacturer Outback Power
Application 230 VAC / 50-60Hz (selectable)
Inverter Model VFXR3024E
Charge Controller FlexMax 80
Dimensions 19.75" x 33.5" x 13"
Weight 98 lbs
Shipping Method Freight

Documentation

Data Sheet Outback FLEXpower One FXR

Features

  • Factory tested, pre-wired and pre-configured systems
  • Fast installation—just hang on the wall with the bracket (included) and make connections
  • Off-grid and grid-tied functionality in one flexible system
  • Powerful system in a compact, space-saving footprint
  • Field-upgradable software
  • Ample AC and DC breaker provisions
  • GridZero technology effectively lets users “zero out” the utility grid if enough renewables are present, reducing or even eliminating grid dependence
  • Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
  • All components carry necessary ETL certifications
OutBack’s pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR Series Grid/Hybrid inverter/chargers. This means that the most advanced Grid/Hybrid inverter features are now available on the industry’s most trusted and proven systems platform, for unmatched flexibility and value.

  • 6 models available for 120VAC or 230VAC applications, ranging from 2500W to 3600W (see attachments below for more details).
  • 50Hz/60Hz selectable for regional diversity.
  • Programmable for seven different modes including GridZero ,which blends utility power and stored renewable energy, minimizing grid dependence; also Support Mode for seamless generator integration.
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including Lithium Ion, and Aqueous types.
  • Field-upgradability eliminates system down-time for critical updates.
  • Remote system control and monitoring available through any internet-enabled device with OPTICS RE.

The FLEXpower ONE FX-R Series is ideal for residential and commercial applications including cabins, vacation homes, farm buildings, remote communications sites and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
