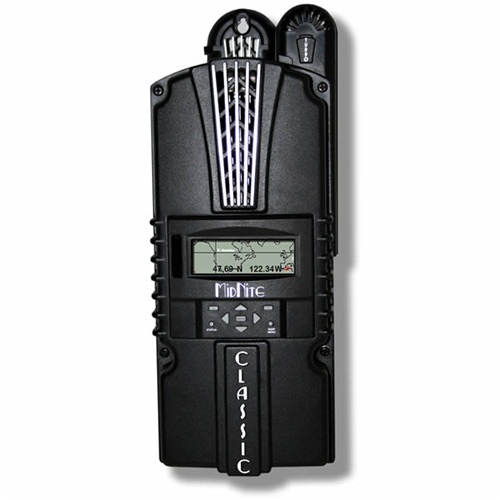

Midnite Solar 56 Amp 250 VDC MPPT Charge Controller
The Classic MPPT Charge Controller substantially increases the flexibility, features and range currently found on MPPT controllers. The Classic is the only MPPT controller that has Arc Fault Detection, making this controller the safest controller available. With the Classic 150 ranging up to 96 amps, the Classic 200, 79 amps and the Classic 250, 63 amps, why would you need any other controller?
Specifications
| Model |
Classic 250KS |
| Series |
Classic |
| Manufacturer |
Midnite Solar |
Mechanical
| Type |
MPPT |
| Applications |
Solar, Hydro |
| Dimensions (W x H x D) |
19" x 8.5" x 5.7" |
| Weight |
12 lbs |
| Shipping Method |
Ground |
Electrical
| Rated Current |
56 A |
| Operating Voltage |
250 V |
| Battery Charging Voltage |
12 V - 120 V |
Features
- 150, 200 and 250V operating voltages.
- 12-72V battery charging standard with models up to 120V battery bank
- Built in DC-GFP and Arc Fault Detector
- Solar, wind and hydro MPPT modes
- Ethernet, USB and RS232
- Remote and local displays possible
- 20 megs of data logging
- Wizard to walk you through the entire setup
|
|
|
 |
|
 |
|
