  Home > Solar Panels > Canadian Solar Panels >

Canadian Solar CS6U-325P > 325 Watt Solar Panel
Canadian Solar CS6U-325P > 325 Watt Solar Panel



Our Price: $211.25
Warranty: 25 Years
Volts: 37.0 V

Availability: For less than 4 solar panel quantity, a pallet break fee may apply. Call for availability.
Product Code: CANADIAN-SOLAR-CS6U-325P
Qty:

Description Datasheet

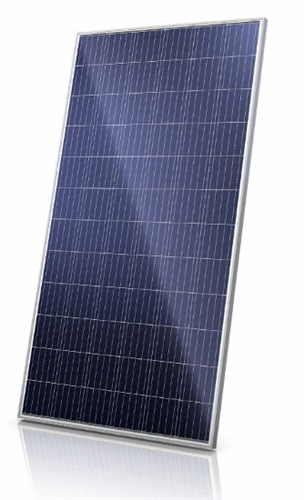

Canadian Solar 325 Watt Max Power Solar Panel

Model CS6U-325P
Series Max Power - CS6U P
Manufacturer Canadian Solar

Mechanical

Type Poly
Dimensions 77.2" x 39.1" x 1.57"
Weight 49.4 lbs
Frame Anodized Aluminum Alloy
Connector MC4 or MC4 Comparable

Electrical

Watts (STC) 325 W
Max Power Voltage (VMPP) 37.0 V
Max Power Current (IMPP) 8.78 A
Open Circuit Voltage (VOC) 45.5 V
Short Circuit Current (ISC) 9.34 A
Max System Voltage DC 1000 V

Documentation

Data Sheet Canadian Solar CS6U-315-330P
Warranty Canadian Solar Panels
UL Installation Canadian Solar Panels
IEC Installation Canadian Solar Panels

Warranty

  • 10 Years Materials and Workmanship
  • 25 Years linear power output

Detailed Information

MaxPower is Canadian Solar's series of robust solar panels with 72 solar cells (CS6U-325P). These panels have high system energy yield at low irradiance and low NOCT. Our stringent quality control system put our panels in the top ranking of California Energy Commission’s PVUSA Testing, leaving 12,471 other P-type silicon panels behind. Our enhanced 40 mm frames ensure the robustness of our panels for up to 5400 Pa load.

Features

  • Excellent module efficiency of up to 16.97 %
  • Outstanding low irradiance performance of up to 96.0 %
  • IP67 junction box for long-term weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
  • High PTC rating of up to 91.55 %
