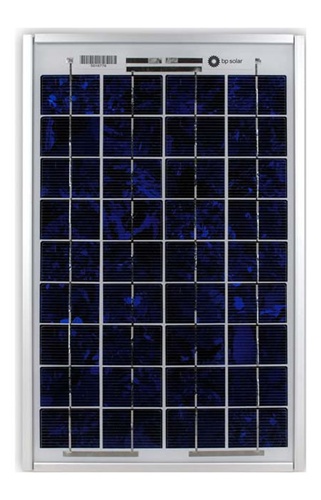

  BP Solar SX 310M, Solar Panel, 10 Watt, 12 Volt
BP Solar SX 310M, Solar Panel, 10 Watt, 12 Volt
BP Solar SX 310M

Our Price: $88.95


Product Code: BP-SOLAR-SX-310M
Qty:


Description

BP Solar SX 310M, Solar Panel, 10 Watt, 12 Volt

M=Multimount frame with lo-pro J-Box and output cable

Detailed Description:
Solar electric modules convert the sun's energy into direct current (DC) electricity. BP Solar Home Solutions® systems use high performance monocrystalline or multicrystalline modules, also called solar panels.

BP Solar modules can be securely mounted to almost any kind of roof – flat or sloped – with just about any type of roofing material, including slate, metal, Spanish tile, asphalt and shake shingles.

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells.

Performance
Rated Power (Pmax)r: 125 watts
Power Tolerance: +-3%
Nominal Voltage: 12 volts
Warranty: 25 years

Configuration
J BP 380J Clear Universal frame and standard J-Box
S BP 380S Clear Universal frame with LoPro J-Box and and polarized Multicontact (MC) connectors

Electrical Characteristics:
Maximum Power (Pmax): 125 Watts
Voltage at Pmax (Vmp): 17.4 Volts
Current at Pmax (Imp): 7.2 Amps
Warranted minimum Pmax: 121.3 Watts
Short-circuit Current (Isc): 8.1 Amps
Open-circuit Voltage: 22.0 Volts
Temperature coefficient of Isc: (0.065+-0.015)%/K
Temperature coefficient of Voc: -(80+-10)mV/K
Temperature coefficient of Power: -(0.5+-0.05)%/K
NOCT (Air 20C, Sun 0.8kW/m2, wind speed 1m/s: 47+-2C
Maximum series fuse rating: 15 amp (S) / 20 amps (J)
Maximum system voltage: 600 V (US NEC), 1000V (TUV Rheinland & IEC 61215)

Mechanical Characteristics
  • S,J Solar Cells : 36 cells (156 x 156 mm) in a 4 x 9 matrix connected in series
  • S Output cables : RHW AWG #12 (4 mm2) cable with polarized weatherproof DC rated Multicontact connectors; asymmetrical lengths -900mm (-) and 800mm (+)
  • J Junction box: J-Version junction box with 6 terminal connection block; IP 65, accepts PG 13.5, M20, 1/2" conduit, or cable fittings accepting 6 to 12 mm diameter cable. Terminals accept 8 to 14 AWG2 (2.5 to 10 mm) wire.
  • S,J Diodes IntegraBusTM technology includes Schottky by-pass diodes integrated into the printed circuit bus.
  • S,J Construction: Front: High transmission 1/8" (3 mm) tempered glass. Back: White back sheet; Encapsulated: EVA.
  • S,J Frame: Clear anodized aluminum alloy type 6063T6. Silver universal frame.

Quality and Safety
  • Manufactured in ISO 9001 certified factories; conforms to European Community Directive 89/33/EEC, 73/23/EEC, 93/68/EEC; certified to IEC 61215
  • Module power measurements calibrated to World Radiometric Reference through ESTI (European Solar Test Installation at Ispra, Italy)
  • Framed modules certified by TUV Rheinland as Safety Class II (IEC 60364) equipment for use in systems up to 1000 VDC
  • Framed modules listed by Underwriter Laboratories for electrical and fire safety (Class C fire rating)
  • Approved by Factory Mutual Research in NEC Class 1, Division 2, Groups C & D hazardous locations (J version only)
Qualifications Test Parameters
Temperature cycling range: 40F to 185F (-40C to 85C)
Humidity freeze, damp heat: 85% RH
Static load front and back (e.g. wind): 50 psf (2400 Pa)
Front loading (e.g. snow): 113 psf (5400 Pa)
Hailstone impact: 1" (25 mm) hail at 52 mph (23 m/s)

S,J
Dimensions (LWD): 59.4" x 26.5" x 1.97" (1510 x 674 x 50 mm)
Weight: 26.5 lbs (12.0 kg)
