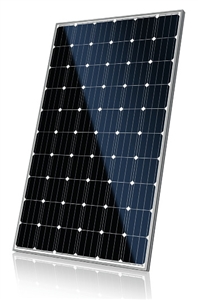

Canadian Solar CS6U-340M > 340 Watt Mono Solar Panel
Canadian Solar CS6U-340M > 340 Watt Mono Solar Panel

Warranty: 25 Years
Volts: 38.1 V

Stock Status:(Out of Stock)
Availability: This item is no longer available.
Product Code: CANADIAN-SOLAR-CS6U-340M

Description Datasheet

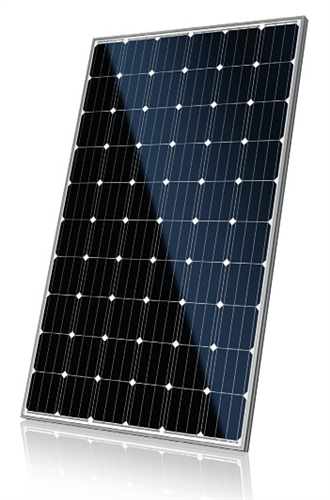

Canadian Solar 340 Watt Max Power Mono Solar Panel

Model CS6U-340M
Series Max Power - CS6U M
Manufacturer Canadian Solar


Type Monocrystalline
Dimensions 77.2" x 39.1" x 1.57"
Weight 49.4 lbs
Frame Anodized Aluminum Alloy
Connector MC4 or MC4 Comparable


Watts (STC) 340 W
Max Power Voltage (VMPP) 37.9 V
Max Power Current (IMPP) 8.97 A
Open Circuit Voltage (VOC) 46.2 V
Short Circuit Current (ISC) 9.48 A
Max System Voltage DC 1000 V


Data Sheet Canadian Solar CS6U-340M
Warranty Canadian Solar Panels
UL Installation Canadian Solar Panels
IEC Installation Canadian Solar Panels


  • 10 Years Materials and Workmanship
  • 25 Years linear power output

Detailed Information

MaxPower is Canadian Solar's series of robust solar panels with 72 solar cells (CS6U-340M). These panels have high system energy yield at low irradiance and low NOCT. Our stringent quality control system put our panels in the top ranking of California Energy Commission’s PVUSA Testing, leaving 12,471 other P-type silicon panels behind. Our enhanced 40 mm frames ensure the robustness of our panels for up to 5400 Pa load.


  • Excellent module efficiency of up to 16.97 %
  • Outstanding low irradiance performance of up to 96.0 %
  • IP67 junction box for long-term weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
  • High PTC rating of up to 91.55 %
