Solartech SPM005P-A > 5 Watt Solar Panel

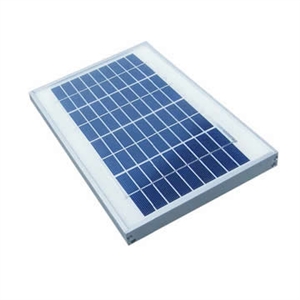

Solartech 5 Watt 17 Volt Solar Panel - SMP005P-A



Warranty: 25 Years
Volts: 17.1 V

Stock Status:(Out of Stock)

Availability: This product is no longer available.
Product Code: SOLARTECH-SPM005P-A


Description Datasheet


Solartech 5 Watt Solar Panel

Model SPM005P-A
Series M-Series
Manufacturer Solartech

Mechanical

Type Poly
Dimensions 13.8" x 8.8" x 0.98"
Weight 2.86 lbs
Frame Anodized aluminum alloy type 6063-T5
Connector Junction Box: Open end, 9 feet (3m) 18 AWG wire - (+/- pigtails)

Electrical

Watts (STC) 5 W
Max Power Voltage (VMPP) 17.1 V
Max Power Current (IMPP) 0.29 A
Open Circuit Voltage (VOC) 21.7 V
Short Circuit Current (ISC) 0.31 A
Max System Voltage (UL) DC 1000 V

Documentation

Data Sheet SolarTech SPM-005P-A

Warranty

  • 12 Years, 90% output
  • 25 years, 80% output

Detailed Information

Solartech M-Series Modules

Solartech photovoltaic M-Series Modules are constructed with high efficient polycrystalline solar cells and produce higher output per module than others in it class. This industrial grade module is an industry standard among various industry professionals.

Features

  • An UL-approved AWG 18 cable is put into the fully sealed junction box (weather and UV resistant) material meet UL1703 and IFC61730 standard
  • (EVA) with TPT cushions the solar cells within the laminate an ensures the operating characteristics of the solar cells under virtually any climatic condition
  • Rigid anodized aluminum frame and low iron tempered glass
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology

Applications

  • Traffic & Safety
  • Federal Government
  • Agricultural
  • Security
  • Telecommunications
  • Water and Wastewater
  • Weather & Environmental Monitoring
  • Telemetry
  • Wi-Fi & Wi-Max
  • Gate & Fence

Solartech Solar Panel Ordering Guideline

Example Model No: SPM005P-R-A
1. Solartech Modules Series
2. Cell type:
P: Polycrystal
M: monocrystal
R: Aluminum Frame (equal or less than 30W)
D: Picture Frame (equal or less than 30W)
A: Cable is 3M, no Ring connector(equal or less than 30W)
N: Cable is 1M, no Ring connector(equal or less than 30W)
F: 4 hole J-BOX no cable;not perforated
F4: 4 hole J-BOX +MC4 connector
F3: 4 hole J-BOX +MC3 connector
L1: 4 hole J-BOX no cable;open-hole at left
R1: 4 hole J-BOX no cable;open-hole at right
LR: 4 hole J-BOX no cable;open-hole at right and left
D2: 4 hole J-BOX no cable;two hole at down
TS(N): normal size (currently just used in SPM080P-TS)
TL: long type size (currently just used in SPM080P-TL)
WP: 33V solar module ,application voltage is 24V
S: Small size than normal
