SolarWorld Sunmodule SW 345 XL Mono > 345 Watt Mono Solar Panel - 4.0 Frame

SolarWorld Sunmodule SW 345 XL Mono > 345 Watt Mono Solar Panel - 4.0 Frame



Compliance: ARRA - Made in the USA
Volts: 38.2 V

Stock Status:In Stock
Availability: This item is no longer available.
Product Code: SOLARWORLD-SW345-XL-MONO


Description Datasheet

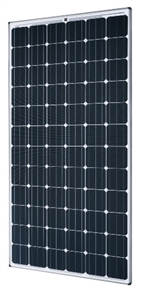

SolarWorld Sunmodule SW 345 XL Mono > 345 Watt Mono Solar Panel - 4.0 Frame

33mm Clear 4.0 Frame, 72 Large-Format Cell Mono

Model SW 345
Series Sunmodule SW XL Mono
Manufacturer SolarWorld

Mechanical

Type Mono
Dimensions 78.46" x 39.4" x 1.30"
Weight 47.6 lbs
Frame Clear Anodized
Connector MC4

Electrical

Watts (STC) 345 W
Max Power Voltage (VMPP) 38.2 V
Max Power Current (IMPP) 9.10 A
Open Circuit Voltage (VOC) 47.8 V
Short Circuit Current (ISC) 9.75 A
Max System Voltage (UL) DC 1000 V

Documentation

Data Sheet SolarWorld Sunmodule SW XL Mono
Warranty SolarWorld

Warranty

  • 10 Year product warranty
  • 25 years, 80% output

Detailed Information

World-class quality

Fully-automated production lines and seamless monitoring of the process and material ensure the quality that the company sets as its benchmark for its sites worldwide.

SolarWorld Plus-Sorting

Plus-Sorting guarantees highest system efficiency. SolarWorld only delivers modules that have greater than or equal to the nameplate rated power.

25-year linear performance guarantee and extension of product warranty to 10 years

SolarWorld guarantees a maximum performance digression of 0.7% p.a. in the course of 25 years, a significant added value compared to the two-phase warranties common in the industry, along with our industry-first 10-year product warranty.

Features

  • TUV Power controlled: Lowest measuring tolerance in industry
  • Every component is tested to meet 3 times IEC requirements Designed to withstand heavy accumulations of snow and ice Sunmodule Positive performance tolerance 25-year linear performance warranty and 10-year product warranty Glass with anti-reflective coating
