Midnite Solar 125 Amp 125 VDC Outback E-Panel - Gray Steel - MNE125ST-L



Our Price: $393.87
Warranty: 5 Years
Compliance: Buy American

Product Code: MS-E-PANEL-MNE125ST-L
Qty:

Description Datasheet

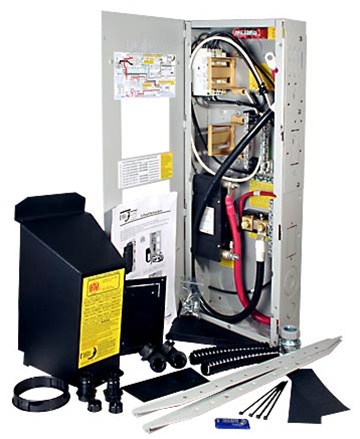

125 Amp Outback E-Panel by Midnite Solar

Midnite Solar E-Panel for Outback Power. 125 AMP / 125 VDC breaker.

Model MNE125ST-L
Series Outback E Panels
Manufacturer Midnite Solar
Finish Gray Steel
Dimensions 25" x 11" x 4"
Weight 28 lbs

The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects required to install your renewable energy system. It can also be expanded as the need arises, allowing for growth.

  • Small size compared to existing disconnect and over current solutions
  • Pre-wired to save time, money, and complexity. All field wiring connections clearly labeled.
  • White powder coated aluminum or standard gray powder coated steel
  • Easily expands to accommodate additional inverters
  • Six slots for din rail breakers, PV, wind, hydro, AC distribution
  • 500 amp 50mv shunt for battery status monitor systems
  • Pre-wired 50 amp 240 VAC inverter AC bypass switch
  • Pre-wired 50 amp 240 VAC AC input disconnect
  • Bus bars for Battery Plus, Battery Minus and ground
  • Mounting hardware for inverter and charge controller
  • Snap in plastic conduit for AC, Mate, and RTS wires
  • Mounting brackets for hanging E-Panel on wall
  • Heavy duty 175 amp AC distribution block
  • ETL listed to UL and Canadian standards
  • Right hand hinged door to mount inverter
  • Knockouts for AC and DC conduits
  • Charge control bracket (CCB)
  • Cutouts for two GFCI outlets
  • DC inverter battery breaker
  • Internal inverter cables
