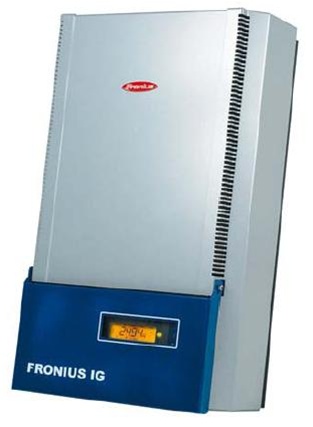

Fronius IG 5000 Watt Grid-Tie Inverter

240 Volt
95.2% Efficiency
Manufacturer Part Number: 4,200,105,800

The Fronius IG inverters offer high efficiency, precision MPP-tracking, and intelligent thermal management, all of which deliver high quality energy output from grid-tied photovoltaic systems. Their wide input voltage range (150-450 volts) enable the use of modules in any power and voltage range. Their light weight and innovative mounting hardware make them very easy to install.

Features

Light Weight

At 26 lbs, the FRONIUS IG inverters are the lightest grid-connected inverters making them easy-to-install.

Flexible

The wide voltage range of 150-500 V allows you to use different types of modules and system configuration possibilities.

Lower Cost

Integrated DC / AC disconnects reduce installation time and complexity.

LCD Display

User-friendly and comes standard with every FRONIUS IG; tracks more than 20 critical system performance parameters. Plug-and-Play Expansion slots in the inverter allow you to easily upgrade the inverter with data communication options.

Specifications

Input Data	IG 4000	IG 5100	IG 4500-LV
Recommend PV power	3000 - 5000 Wp	4000 - 6300 Wp	3600 - 5500 Wp
Max. DC input voltage	500 V	500 V	500 V
Operating DC voltage range	150 - 450 V	150 - 450 V	150 - 450 V
Max. usable DC input current	26.1 A	33.2 A	29.3 A
Output Data
Max. Output power @ 40°C	4000 W	5100 W	4500 W
Nominal AC output voltage	240 V	240 V	208 V
Utility AC voltage range	212 - 264 V	183 - 229V
Maximum AC current	16.7 A	21.3 A	21.6 A
Max. utility back feed current	0.0 A	0.0 A	0.0 A
Operating frequency range	59.3 - 60.5 Hz (60 Hz nom)
Total Harmonic Distortion THD	<5%
Power Factor (cos phi)	1
General Data
Max. Efficiency	95.2%	95.2%	94.4%
Consumption in stand-by	< 0.15 W (night)
Consumption during operation	15 W
Enclosure	NEMA 3R
Size (L x W x H)	28.4 x 16.5 x 8.8 inches (720 x 418 x 223 mm)
Weight	42 lbs (19 kg)
Ambient Temperature Range	-5 to 122 °F (-20 to +50 °C)
Cooling	controlled forced ventilation
Integrated AC and DC disconnects	standard UL approved DC & AC disconnects
Protections
Ground fault protection	Internal GFDI, in accordance with UL 1741
DC reverse polarity	Internal diode
Islanding protection	Internal, in accordance with UL 1741, IEEE 1547
Over temperature	Output power derating
Surge protection	Internadl DC & AC protection to 6 kV
Compliance
Safety	UL 1741
EMI	FCC Part 15; Class A & B
Anti-islandinig protection	UL 1741, IEEE 1547
Ground fault detector and interruptor	Compliant with NEC Art. 690 requirements, UL 1741
Miscellaneous
Max. AC over current protection	Two-pole, 30 A circuit breaker
AC wire sizing	Use maximum AWG 6 194 °F (90 °C) copper wire
DC wire sizing	Use maximum AWG 8 194 °F (90 °C) copper wire
AC disconnect	32 A
DC disconnect	40 A
Warranty	10 year Premium Warranty is standard

Detailed Description

Built-in DC and AC disconnects eliminate the need for external breakers in some cases, decreasing total system costs. Fronius IG inverters come standard with an integrated LCD that displays and records over 20 parameters related to the inverter and system operation. Fronius inverters have 3 expansion slots that allow you to add features, such as external sensors and remote displays. You can use a personal computer to update the inverter with the latest software upgrades.

The larger inverters (over 3kw) are built with the same power stages as the smaller ones, but use 2 of them. When these inverters see less than 1/2 array capacity, one stage turns off, giving the inverter higher efficiency during periods of low insulation. UL listed. 7-year warranty.
