Canadian Solar CS6K-275M > 275 Watt Mono Solar Panel - Black Frame, White Back Sheet - BOW

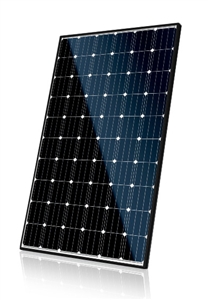

Canadian Solar CS6K-275M > 275 Watt Mono Solar Panel - Black Frame, White Back Sheet - BOW
Canadian Solar 275 Watt 60 cell 31.3V Mono Solar Panel - Black Frame



Volts: 31.3 V

Stock Status:(Out of Stock)

Availability: This item is no longer available.
Product Code: CANADIAN-SOLAR-CS6K-275W-BOW


Description Datasheet


Canadian Solar CS6K-275M > 275 Watt Mono Solar Panel - Black Frame, White Backsheet - BOW

Monocrystalline 60 Cell Solar Panel. Black Frame, White Backsheet

Model CS6K-275M - BOW
Series Quartech CS6K
Manufacturer Canadian Solar

Mechanical

Type Monocrystalline
Dimensions 65" x 39.1" x 1.57"
Weight 40.1 lbs
Frame Anodized aluminum
Connector Junction Box

Electrical

Watts (STC) 275 W
Max Power Voltage (VMPP) 31.3 V
Max Power Current (IMPP) 8.80 A
Open Circuit Voltage (VOC) 38.3 V
Short Circuit Current (ISC) 9.31 A
Max System Voltage (UL) DC 1000 V

Warranty

  • 10 Years Materials and Workmanship
  • 25 Years linear power output

Documentation

Data Sheet Canadian Solar CS6K
Warranty Canadian Solar Panels

Detailed Information

Canadian Solar's new CS6K (CS6K-275W-T4 - BoB) is a robust solar module with 60 solar cells that have raised the module efficiency to a new standard in the solar industry. The module is available with four or five busbar cell technology, demonstrating higher power output and superior system reliability. Our customers have embraced this next generation of modules worldwide for their enhanced value.

Features

  • Excellent module efficiency of up to 17.11 %
  • Outstanding low irradiance performance: 96.5 %
  • Positive power tolerance of up to 5 W
  • High PTC rating of up to 90.93 % IP67 junction box for long-term weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
  • Salt mist, and ammonia resistance, for seaside and farm environments*
