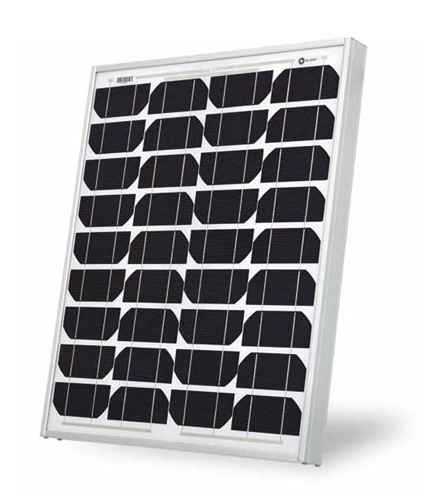

BP Solar by Ameresco 40J - 40 Watt Solar Panel



This product has been discontinued, an alternative would be:
Solartech SPM040P-BP > 40 Watt Solar Panel / Class 1 Division 2
Warranty: 25 Years
Volts: 17.3 V

Stock Status:(Out of Stock)

Product Code: BP-SOLAR-BP-440J


Description


BP Solar 40 Watt Solar Panel

Ruggedized for dangerous environments, these panels carry ISO 9001 certification as well as IEC 61215 and 61730. They are certified use in Class 1, Division 2 Hazardous locations and conform with European Directive 2006/95/EC.

Model BP 440J / 40J
Series BP Solar
Manufacturer Ameresco

Mechanical

Type Mono
Dimensions 25.8" x 21.1" x 2.0"
Weight 12.7 lbs
Frame Silver Anodized Alimunum
Connector

Electrical

Watts (STC) 40 W
Watts (PTC) 28.8 W
Max Power Voltage (VMPP) 17.3 V
Max Power Current (IMPP) 2.31 A
Open Circuit Voltage (VOC) 21.8 V
Short Circuit Current (ISC) 2.54 A
Max System Voltage DC 600 V

Documentation

Data Sheet BP Solar 440J

Warranty

  • 5 Years Materials and Workmanship
  • 12 Years at 93% output
  • 25 Years at 85% output

Detailed Information

BP Solar has been pioneering photovoltaic (PV) solar for almost 40 years. This experience shows that the best way to optimize module life and electrical energy production is to attend to every detail in the design and manufacture of our products, our process controls and testing methods. BP Solar’s latest generation of small area modules offers many benefits.

Enhanced warranty

BP Solar provides an industry leading warranty, guaranteeing lower degradation rates on our modules manufactured beginning January 1st, 2010. Our superior long-term performance is proven by internal testing standards that go well beyond international requirements.

Accessible junction box for off grid connections

BP J-type junction box has accessible terminals for easier module interconnections in off grid applications, and it allows fitting cable glands for various cable sections.

Improved cell protection, strong protective frame

Robust frame, designed to support the harshest weather conditions, ensures best protection for higher energy producing cells.

Thick, durable, scratch resistant back sheet

Our new thicker back sheet provides extra insulation and increased resistance to protect your module against rough handling. Made of white polyester, it ensures longer term performance and increased energy production.
