Astronergy CHSM6610P-245 Wp > 245 Watt Poly Solar Panel - Black Frame

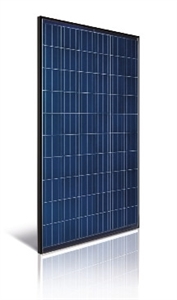

Astronergy CHSM6610P-245 Wp > 245 Watt Poly Solar Panel - Black Frame



Warranty: 25 Years
Volts: 29.92 V


Availability: This item is no longer available.
Product Code: ASTRONERGY-CHSM6610P-245


Description Datasheet


Astronergy CHSM6610P-245 Wp > 245 Black on Black Solar Panel

Black Frame, Black Backsheet

By leveraging vertical integration, Astronergy is able to keep the cost-per-watt of these sleek panels low for the end user while maintaining high quality standards. The Astronergy CHSM6610P-245 Wp solar panels are designed for residential systems and other grid-tie applications.

Model 245 Wp
Series CHSM6610P
Manufacturer Astronergy

Mechanical

Type Polycrystalline
Dimensions 65.04" x 39.13" x 1.38"
Weight 41.8 lbs
Frame Blackl Anodized Aluminum
Connector Junction Box

Electrical

Watts (STC) 245 W
Max Power Voltage (VMPP) 29.92 V
Max Power Current (IMPP) 8.20 A
Open Circuit Voltage (VOC) 37.98 V
Short Circuit Current (ISC) 8.62 A
Max System Voltage (UL) DC 600 V

Warranty

  • 10 Years - 90% Power Output
  • 25 Years - 80% Power Output

Documentation

Data Sheet Astronergy CHSM6610P Series
Warranty Astronergy

Detailed Information

  • With innovative 4-busbar cells
  • Reducing cell series resistance
  • Increasing cell efficiency
  • More power output
